Integrated UHF RFID Reader
$484.00
The integrated UHF RFID reader is a single-channel fixed UHF RFID reader, which is equipped with an integrated high-performance antenna based on the self-developed module based on the Impinj E710 chip. It supports multiple communication interfaces such as RS-232, RJ45, GPIO, etc., enabling it to be widely used in multiple scenarios such as warehousing, file management, book management, banking, and production line management.
Description
Features
Frequency Band
UHF 860~960 MHz
Engine
Based on Impinj® E710
International Standard
ISO/IEC 18000-6C, EPCglobal Gen2
Communication Interface
RS-232, RJ45, GPIO
IP Rating
IP67 per IEC sealing specifications
Fastest Read Rate
950+ tags/sec
Specifications
Physical Specifications
Material: Plastic + Aluminum Alloy
Dimension: 270×270×77 mm | 10.63×10.63×3.03 in
Weight: 2230 g | 78.66 oz
Input Voltage: DC 9-12 V
Standby Current: <30 mA
Work Current: 800mA +/-5% @ DC 12V Input
Weight: 2230 g | 78.66 oz
Comm Interface: RS-232, RI45, GPIO
Baud Rate: 115200 bps
Cooling Mode: Air cooling
Communication Method: 10/100 Base-T Ethernet (RJ45)
Comm Interface: RS-232, RI45, GPIO
IP Rating: IP67 per IEC sealing specifications
Antenna
Frequency: 865~868 MHz | 920~925 MHz | 902~928 MHz
Polarization Mode: RHCP (Right-handed Circular Polarization)
Gain: 9 dBi
Horizontal Angle: 60°
Vertical Angle: 55°
VSWR: ≤1.3
FBR: 17 dB
Characteristic Impedance: 50Ω
Maximum Input Power: 20w
Lightning Protection: DC Ground
Antenna Port: SMA Male
RFID UHF
Engine: Based on Impinj® E710
Protocol: ISO/IEC 18000-6C, EPCglobal Gen2
Frequency: 865-868 MHz | 920-925 MHz | 902-928 MHz
Output Power: 1W (30 dBm, support +5~+30 dBm adjustable)
2W Optional (33 dBm, support +10 ~ +33 dBm adjustable, for Latin America, etc.)
Output Power Precision: +/- 1 dB
Output Power Flatness: +/- 0.2 dB
Receive Sensitivity: <-84 dBm
Fastest Read Rate: 950+ tags/sec
RSSI: Supported
Ambient Temp Monitor: Supported
Environment
Operating Temp:
-25°C~ 65°C | -12°F ~ 149°F
Storage Temp:
-40°C ~ 85°C | -40°F ~ 185°F
Humidity: 10%RH ~95%RH non condensing
Download & Support AZ-UR1A
Fixed vs. Handheld RFID Readers RFID Reader

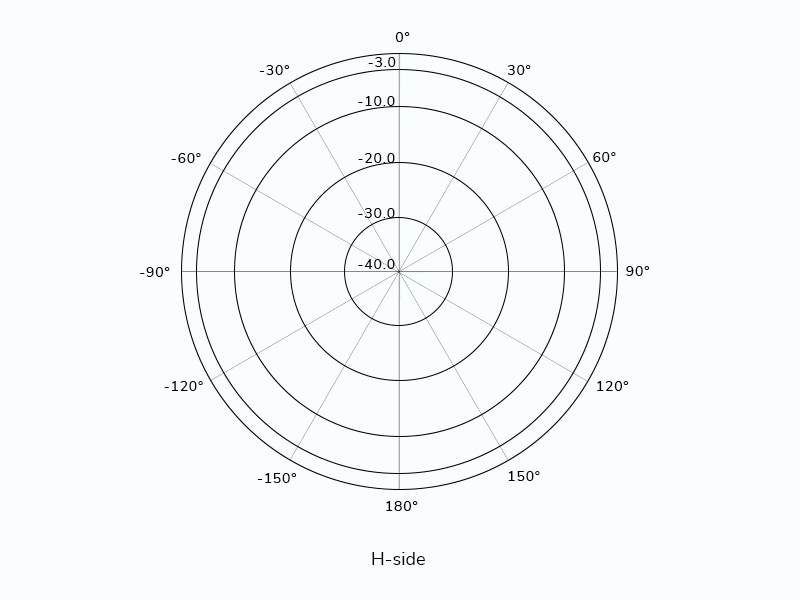

Reading Range H-side

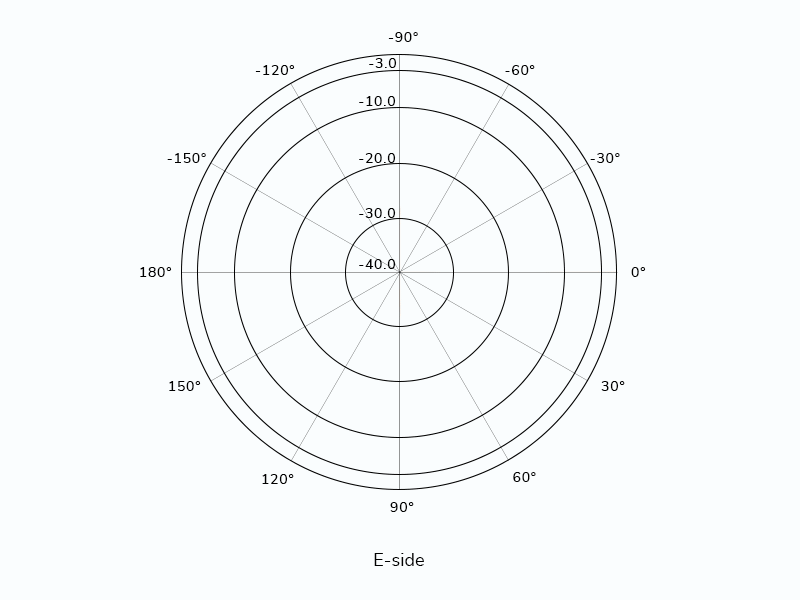

Reading Range E-side
