CD Type RFID Label ⌀40mm NXP ICODE® SLIX | ISO15693 NFC type 5
$42.00–$1,013.00Price range: $42.00 through $1,013.00
Experience seamless CD management in libraries like never before with our CD Type RFID Label featuring NXP ICODE® SLIX technology. Designed to ISO15693 and NFC Type 5 standards, this label boasts an outer diameter of ⌀40mm and an inner diameter of ⌀16mm, perfectly fitting your CDs. Optimize your library’s inventory tracking and enable quick, efficient check-outs with this specialized RFID solution.
Chip Manufacturer:NXP® Chip Type:ICODE® SLIX User Memory: 896 bits TID Memory: 64 bits Reading Rate: 53 kbit/s High data integrity: 16-bit CRC Lock mechanism: EAS, AFI, DSFID Write Endurance: 100,000 cycles Data Retention: 50 years
Additional Information
Operating Environment: Label attach: 10°C ~ 40°C, 20% ~ 80% RH After label attached: -20°C ~ 50°C, 20% ~ 80% RH Storage Environment: 18°C ~ 28°C, 40% ~ 60% RH Handling Precautions: 1. Do not bend. 2. Keep away from water and collision. 3. Labels with black-dot marks are bad ones, do not use.
Packaging
Packing Format: Packed in roll, vacuumed packing in ESD bag Roll OD: Max. 180 mm Core ID: 3 inch (76.20 ± 0.50 mm) Packing Quantity: 1000 Pcs/roll, per roll 0.518 kg
There are four ICs within NXP ICODE® SLIX family, that ICODE® SLIX, ICODE® SLIX2, ICODE® SLIX-L and ICODE® SLIX-S. The difference in between is mainly the size of EEPROM. ICODE® SLIX is the only type of IC DOES NOT support EAS selection and memory protection.
As a leading RFID hardware manufacturer for over a decade, we are committed to delivering unparalleled quality at competitive prices. Our advanced production facilities and stringent quality control ensure that every product meets the highest standards.
EXPERTISE & INNOVATION
Our expert team drives innovation in RFID technology. Whether you need custom solutions or cutting-edge products, we provide advanced and effective RFID solutions tailored to your needs.
EFFICIENT & RELIABILITY
We offer reliable global shipping with in-stock items delivered within 1-3 business days in North America, Europe, and the Asia Pacific. Our proven track record ensures your satisfaction every time.
CD Type RFID Label ⌀40mm NXP ICODE® SLIX | ISO15693 NFC type 5
$42.00 – $1,013.00Price range: $42.00 through $1,013.00
Experience seamless CD management in libraries like never before with our CD Type RFID Label featuring NXP ICODE® SLIX technology. Designed to ISO15693 and NFC Type 5 standards, this label boasts an outer diameter of ⌀40mm and an inner diameter of ⌀16mm, perfectly fitting your CDs. Optimize your library’s inventory tracking and enable quick, efficient check-outs with this specialized RFID solution.
Description
Features
Frequency Band
HF 13.56 MHz
Chip Type
NXP ICODE® SLIX
International Standard
ISO/IEC 15693, ISO/IEC 18000-3, NFC Forum Tag Type 5
User Memory
896 bits
Read Range
Up to 1.5 m
Certificate
WEEE compliant
Specifications
Physical Specifications
Material: Coated Paper
Label Size: Diameter 40 mm
Antenna Size: Diameter 34 mm
Substrate: PET
Technical Parameters
Operating Frequency: 13.56 MHz
Communication Protocol:
ISO/IEC 15693, ISO/IEC 18000-3, NFC Forum Tag Type 5
Read Range: Up to 1.5 m
Capacitance: 23.5 pF
Operating mode: Passive
Chip Characteristics
Chip Manufacturer: NXP®
Chip Type: ICODE® SLIX
User Memory: 896 bits
TID Memory: 64 bits
Reading Rate: 53 kbit/s
High data integrity: 16-bit CRC
Lock mechanism: EAS, AFI, DSFID
Write Endurance: 100,000 cycles
Data Retention: 50 years
Additional Information
Operating Environment:
Label attach: 10°C ~ 40°C, 20% ~ 80% RH
After label attached: -20°C ~ 50°C, 20% ~ 80% RH
Storage Environment:
18°C ~ 28°C, 40% ~ 60% RH
Handling Precautions:
1. Do not bend.
2. Keep away from water and collision.
3. Labels with black-dot marks are bad ones, do not use.
Packaging
Packing Format: Packed in roll, vacuumed packing in ESD bag
Roll OD: Max. 180 mm
Core ID: 3 inch (76.20 ± 0.50 mm)
Packing Quantity: 1000 Pcs/roll, per roll 0.518 kg
Download & Support AZL-SLX-CP-D4016CD
Smart CD Management NFC Products & CD-Type
There are four ICs within NXP ICODE® SLIX family, that ICODE® SLIX, ICODE® SLIX2, ICODE® SLIX-L and ICODE® SLIX-S. The difference in between is mainly the size of EEPROM. ICODE® SLIX is the only type of IC DOES NOT support EAS selection and memory protection.
Unique Identifier (UID): 64 bits
User Memory: 896 bits
EEPROM: 1024 bits, organized in 32 blocks of 4 bytes each
Operating frequency: 13.56 MHz
Operating distance: Up to 1.5 meter
Data Transfer Rate: Up to 53 kbit/s
Communication Protocol: ISO15693, ISO18000-3, NFC Forum Tag 5 Type
Input capacitance: 23.5 pF / 97 pF
Lock mechanism for DSFID, AFI, EAS
Password (32-bit) protected EAS and AFI functionality
anti-collision: Yes
Data retention: 50 years
Write endurance: 100,000 cycles
Unique Identifier (UID): 64 bits
User Memory: 2528 bits
EEPROM: 2560-bit user memory, 80 blocks of 4 bytes each
Operating frequency: 13.56 MHz
Operating distance: Up to 1.5 meter
Data Transfer Rate: Up to 53 kbit/s
Communication Protocol: ISO15693, ISO18000-3, NFC Forum Tag 5 Type
Input capacitance: 23.5 pF
Lock mechanism for DSFID, AFI, EAS
Password (32-bit) protected EAS and AFI functionality
Password (32-bit) protected Label Destroy
Password (32-bit) protected Privacy Mode
anti-collision: Yes
Data retention: 50 years
Write endurance: 100,000 cycles
Unique Identifier (UID): 64 bits
User Memory: 256 bits
EEPROM: 512 bits, organized in 16 blocks of 4 bytes each
Operating frequency: 13.56 MHz
Operating distance: Up to 1.5 meter
Data Transfer Rate: Up to 53 kbit/s
Communication Protocol: ISO15693, ISO18000-3, NFC Forum Tag 5 Type
Input capacitance: 23.5 pF / 97 pF
Lock mechanism for DSFID, AFI, EAS
Password (32-bit) protected EAS and AFI functionality
Password (32-bit) protected Label Destroy
Password (32-bit) protected Privacy Mode
anti-collision: Yes
Data retention: 50 years
Write endurance: 100,000 cycles
Unique Identifier (UID): 64 bits
User Memory: 1280 bits
EEPROM: 2048 bits (2 KB), organized in 64 blocks of 4 bytes each
Operating frequency: 13.56 MHz
Operating distance: Up to 1.5 meter
Data Transfer Rate: Up to 53 kbit/s
Communication Protocol: ISO15693, ISO18000-3, NFC Forum Tag 5 Type
Input capacitance: 23.5 pF / 97 pF
Lock mechanism for DSFID, AFI, EAS
Password (32-bit) protected EAS and AFI functionality
Password (32-bit) protected Label Destroy
Password (32-bit) protected Privacy Mode
anti-collision: Yes
Data retention: 50 years
Write endurance: 100,000 cycles
Loooking for More Products? search or use the categories
Why Choose us
QUALITY & VALUE
As a leading RFID hardware manufacturer for over a decade, we are committed to delivering unparalleled quality at competitive prices. Our advanced production facilities and stringent quality control ensure that every product meets the highest standards.
EXPERTISE & INNOVATION
Our expert team drives innovation in RFID technology. Whether you need custom solutions or cutting-edge products, we provide advanced and effective RFID solutions tailored to your needs.
EFFICIENT & RELIABILITY
We offer reliable global shipping with in-stock items delivered within 1-3 business days in North America, Europe, and the Asia Pacific. Our proven track record ensures your satisfaction every time.
Ask How We can Help
RFID Readers to Match ISO 15693 Compliant
High Power Desktop HF RFID Reader
ACS® ACR1552U Desktop HF NFC Reader
HF RFID Reader RD5230 ISO15693 and ISO18000-3M1
HF RFID Reader RD5224 ISO15693 and ISO18000-3M1
Multi-Protocol Desktop HF RFID Reader / Writer
Desktop HF ISO15693 RFID Reader / Writer AZ-RL173
Fixed RFID Readers ISO 15693
Additional information
You may also like…

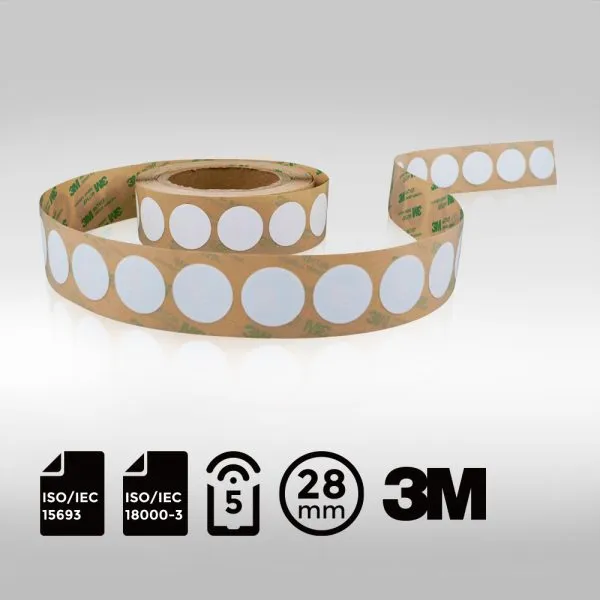

NFC Label ⌀28mm for NXP ICODE® SLIX | ISO15693 NFC type 5
