Chip Manufacturer:NXP® Chip Type:ICODE® SLIX Data Retention: 50 years User memory: 896 bits TID memory: 64 bits Write Endurance: 100,000 cycles Reading Rate: 53 kbit/s High data integrity: 16-bit CRC Lock mechanism: EAS, AFI, DSFID Anti-Collision Function: Yes Password: 32-bit protected EAS and AFI functionality
Additional Information
Operating Environment: Label attach: 10°C ~ 40°C, 20% ~ 80% RH After label attached: -20°C ~ 50°C, 20% ~ 80% RH Storage Environment: 18°C ~ 28°C, 40% ~ 60% RH Handling Precautions: 1. Do not bend. 2. Keep away from water and collision. 3. Labels with black-dot marks are bad ones, do not use.
Packaging
Packing Format: Packed in roll, vacuumed packing in ESD bag Roll OD: Max. 203.2 mm Core ID: 3 inch (76.20 ± 0.50 mm) Packing Quantity: 500 Pcs/roll, per roll 0.237 kg
There are four ICs within NXP ICODE® SLIX family, that ICODE® SLIX, ICODE® SLIX2, ICODE® SLIX-L and ICODE® SLIX-S. The difference in between is mainly the size of EEPROM. ICODE® SLIX is the only type of IC DOES NOT support EAS selection and memory protection.
As a leading RFID hardware manufacturer for over a decade, we are committed to delivering unparalleled quality at competitive prices. Our advanced production facilities and stringent quality control ensure that every product meets the highest standards.
EXPERTISE & INNOVATION
Our expert team drives innovation in RFID technology. Whether you need custom solutions or cutting-edge products, we provide advanced and effective RFID solutions tailored to your needs.
EFFICIENT & RELIABILITY
We offer reliable global shipping with in-stock items delivered within 1-3 business days in North America, Europe, and the Asia Pacific. Our proven track record ensures your satisfaction every time.
NFC Label 37x25mm NXP ICODE® SLIX | ISO15693
$42.00 – $1,000.00Price range: $42.00 through $1,000.00
This is the NFC label with a size of 25x37mm, designed for ICODE® SLIX, ICODE® ILT and ICODE® DNA IC. This RFID label complies with ISO/IEC 15693 and ISO/IEC 18000-3 specifications. The ICODE® series meet the requirement for NFC Forum Tag Type 5 standard.
Description
Features
Frequency Band
HF 13.56 MHz
Chip Type
NXP ICODE® SLIX
International Standard
ISO/IEC 15693, ISO/IEC 18000-3, NFC Forum Tag Type 5
User Memory
896 bits
Read Range
Up to 1.5 m
Certificate
WEEE compliant
Specifications

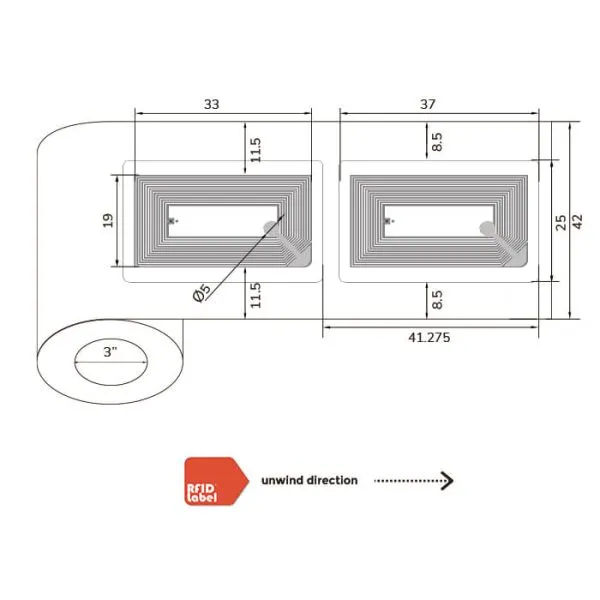

Physical Specifications
Material: Clear PET
Label Size: 25×37 mm
Antenna Size: 19×33 mm
Technical Parameters
Operating Frequency: 13.56 MHz
Communication Protocol:
ISO/IEC 15693, ISO/IEC 18000-3, NFC Forum Tag Type 5
Read Range: Up to 1.5 m
Capacitance: 23.5 pF
Operating mode: Passive
Chip Characteristics
Chip Manufacturer: NXP®
Chip Type: ICODE® SLIX
Data Retention: 50 years
User memory: 896 bits
TID memory: 64 bits
Write Endurance: 100,000 cycles
Reading Rate: 53 kbit/s
High data integrity: 16-bit CRC
Lock mechanism: EAS, AFI, DSFID
Anti-Collision Function: Yes
Password: 32-bit protected EAS and AFI functionality
Additional Information
Operating Environment:
Label attach: 10°C ~ 40°C, 20% ~ 80% RH
After label attached: -20°C ~ 50°C, 20% ~ 80% RH
Storage Environment:
18°C ~ 28°C, 40% ~ 60% RH
Handling Precautions:
1. Do not bend.
2. Keep away from water and collision.
3. Labels with black-dot marks are bad ones, do not use.
Packaging
Packing Format: Packed in roll, vacuumed packing in ESD bag
Roll OD: Max. 203.2 mm
Core ID: 3 inch (76.20 ± 0.50 mm)
Packing Quantity: 500 Pcs/roll, per roll 0.237 kg
There are four ICs within NXP ICODE® SLIX family, that ICODE® SLIX, ICODE® SLIX2, ICODE® SLIX-L and ICODE® SLIX-S. The difference in between is mainly the size of EEPROM. ICODE® SLIX is the only type of IC DOES NOT support EAS selection and memory protection.
Unique Identifier (UID): 64 bits
User Memory: 896 bits
EEPROM: 1024 bits, organized in 32 blocks of 4 bytes each
Operating frequency: 13.56 MHz
Operating distance: Up to 1.5 meter
Data Transfer Rate: Up to 53 kbit/s
Communication Protocol: ISO15693, ISO18000-3, NFC Forum Tag 5 Type
Input capacitance: 23.5 pF / 97 pF
Lock mechanism for DSFID, AFI, EAS
Password (32-bit) protected EAS and AFI functionality
anti-collision: Yes
Data retention: 50 years
Write endurance: 100,000 cycles
Unique Identifier (UID): 64 bits
User Memory: 2528 bits
EEPROM: 2560-bit user memory, 80 blocks of 4 bytes each
Operating frequency: 13.56 MHz
Operating distance: Up to 1.5 meter
Data Transfer Rate: Up to 53 kbit/s
Communication Protocol: ISO15693, ISO18000-3, NFC Forum Tag 5 Type
Input capacitance: 23.5 pF
Lock mechanism for DSFID, AFI, EAS
Password (32-bit) protected EAS and AFI functionality
Password (32-bit) protected Label Destroy
Password (32-bit) protected Privacy Mode
anti-collision: Yes
Data retention: 50 years
Write endurance: 100,000 cycles
Unique Identifier (UID): 64 bits
User Memory: 256 bits
EEPROM: 512 bits, organized in 16 blocks of 4 bytes each
Operating frequency: 13.56 MHz
Operating distance: Up to 1.5 meter
Data Transfer Rate: Up to 53 kbit/s
Communication Protocol: ISO15693, ISO18000-3, NFC Forum Tag 5 Type
Input capacitance: 23.5 pF / 97 pF
Lock mechanism for DSFID, AFI, EAS
Password (32-bit) protected EAS and AFI functionality
Password (32-bit) protected Label Destroy
Password (32-bit) protected Privacy Mode
anti-collision: Yes
Data retention: 50 years
Write endurance: 100,000 cycles
Unique Identifier (UID): 64 bits
User Memory: 1280 bits
EEPROM: 2048 bits (2 KB), organized in 64 blocks of 4 bytes each
Operating frequency: 13.56 MHz
Operating distance: Up to 1.5 meter
Data Transfer Rate: Up to 53 kbit/s
Communication Protocol: ISO15693, ISO18000-3, NFC Forum Tag 5 Type
Input capacitance: 23.5 pF / 97 pF
Lock mechanism for DSFID, AFI, EAS
Password (32-bit) protected EAS and AFI functionality
Password (32-bit) protected Label Destroy
Password (32-bit) protected Privacy Mode
anti-collision: Yes
Data retention: 50 years
Write endurance: 100,000 cycles
