Our Ø38mm 13.56MHz NFC label is powered by the advanced NXP NTAG® 213 chip, delivering high-performance tracking in an ultra-compact design. With fast data transfer speeds and 144 bytes of user memory, it excels in applications such as asset tracking, smart advertising, and secure event access. Fully compatible with ISO/IEC 14443-A and NFC Forum Type-2 communication protocols, this label ensures seamless integration across devices. Enhanced with anti-collision technology and password protection, it offers robust security alongside efficient functionality, making it a smart and reliable solution for modern NFC needs.

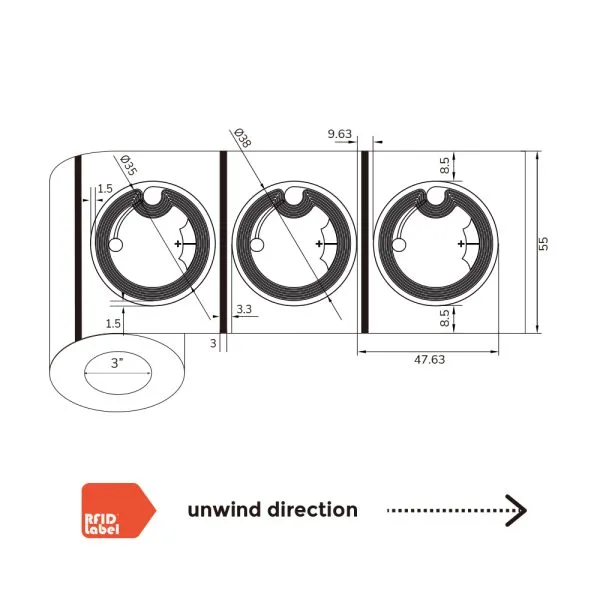

Material: Biaxially Oriented Polypropylene (BOPP) Size: Diameter 38 mm Antenna Size: Diameter 35 mm
Technical Parameters
Operating Frequency: 13.56 MHz Communication Protocol: ISO/IEC 14443-A, NFC Forum Type 2 Read Range: Up to 10 m Operating mode: Passive Internal Tuning Capacitance: 50 pF
Chip Characteristics
Chip Manufacturer:NXP® Chip Type:NTAG® 213 Data Retention: 10 years User memory: 144 bytes UID Memory: 7 bytes Write Endurance: 100,000 cycles Read Sensitivity: 106 kbit/s High data integrity: 16-bit CRC Anti-Collision Function: Yes Password: 32 bits ESD Voltage Immunity: Max. 2000V
Additional Information
Operating Environment: Label attach: 10°C ~ 40°C, 20% ~ 80% RH After label attached: -20°C ~ 50°C, 20% ~ 80% RH Storage Environment: 18°C ~ 28°C, 40% ~ 60% RH Handling Precautions: 1. Do not bend. 2. Keep away from water and collision. 3. Labels with black-dot marks are bad ones, do not use.
Packaging
Packing Format: Packed in roll, vacuumed packing in ESD bag Roll OD: Max. 215 mm Core ID: 3 inch (76.20 ± 0.50 mm) Packing Quantity: 3000 Pcs/roll, per roll 1.1765 kg
Loooking for More Products? search or use the categories
As a leading RFID hardware manufacturer for over a decade, we are committed to delivering unparalleled quality at competitive prices. Our advanced production facilities and stringent quality control ensure that every product meets the highest standards.
EXPERTISE & INNOVATION
Our expert team drives innovation in RFID technology. Whether you need custom solutions or cutting-edge products, we provide advanced and effective RFID solutions tailored to your needs.
EFFICIENT & RELIABILITY
We offer reliable global shipping with in-stock items delivered within 1-3 business days in North America, Europe, and the Asia Pacific. Our proven track record ensures your satisfaction every time.
NXP NTAG® 213 BOPP NFC Label Ø38mm
$38.00 – $987.00Price range: $38.00 through $987.00
Our Ø38mm 13.56MHz NFC label is powered by the advanced NXP NTAG® 213 chip, delivering high-performance tracking in an ultra-compact design. With fast data transfer speeds and 144 bytes of user memory, it excels in applications such as asset tracking, smart advertising, and secure event access. Fully compatible with ISO/IEC 14443-A and NFC Forum Type-2 communication protocols, this label ensures seamless integration across devices. Enhanced with anti-collision technology and password protection, it offers robust security alongside efficient functionality, making it a smart and reliable solution for modern NFC needs.
Description
Features
Frequency Band
HF 13.56 MHz
Chip Type
NXP NTAG® 213
International Standard
ISO/IEC 14443-A, NFC Forum Type 2
User Memory
144 bytes
TID Memory
7 bytes
Read Range
Up to 10 m
Specifications
Physical Specifications
Material: Biaxially Oriented Polypropylene (BOPP)
Size: Diameter 38 mm
Antenna Size: Diameter 35 mm
Technical Parameters
Operating Frequency: 13.56 MHz
Communication Protocol:
ISO/IEC 14443-A, NFC Forum Type 2
Read Range: Up to 10 m
Operating mode: Passive
Internal Tuning Capacitance: 50 pF
Chip Characteristics
Chip Manufacturer: NXP®
Chip Type: NTAG® 213
Data Retention: 10 years
User memory: 144 bytes
UID Memory: 7 bytes
Write Endurance: 100,000 cycles
Read Sensitivity: 106 kbit/s
High data integrity: 16-bit CRC
Anti-Collision Function: Yes
Password: 32 bits
ESD Voltage Immunity: Max. 2000V
Additional Information
Operating Environment:
Label attach: 10°C ~ 40°C, 20% ~ 80% RH
After label attached: -20°C ~ 50°C, 20% ~ 80% RH
Storage Environment:
18°C ~ 28°C, 40% ~ 60% RH
Handling Precautions:
1. Do not bend.
2. Keep away from water and collision.
3. Labels with black-dot marks are bad ones, do not use.
Packaging
Packing Format: Packed in roll, vacuumed packing in ESD bag
Roll OD: Max. 215 mm
Core ID: 3 inch (76.20 ± 0.50 mm)
Packing Quantity: 3000 Pcs/roll, per roll 1.1765 kg
