Round RFID Label Dia 30mm NXP MIFARE Ultralight® EV1 | ISO14443A
$42.00–$1,015.00Price range: $42.00 through $1,015.00
The Ø30mm NXP MIFARE Ultralight® EV1 RFID label is a high-performance tag made of durable PET material, with a built-in NXP MIFARE Ultralight® EV1 chip, compliant with ISO14443A standard ensuring fast and secure data transmission. Its compact design is ideal for a variety of applications, and it protects your contactless operations with enhanced security features and powerful performance.

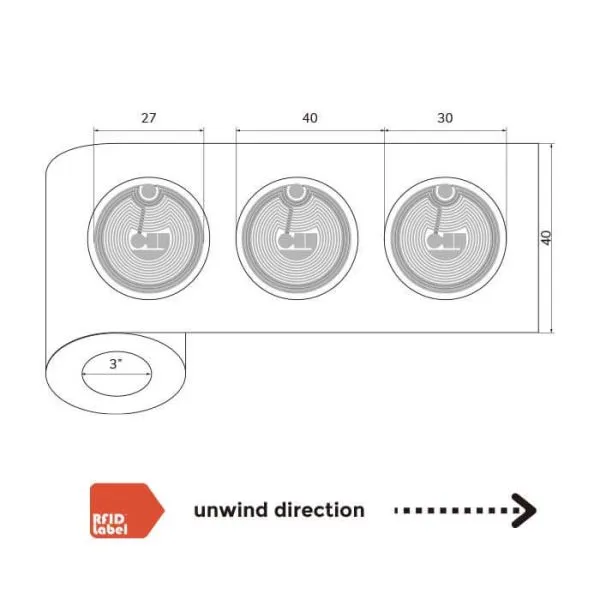

Material: PET + 3M adhesive Label Size: Diameter 30 mm Antenna Size: Diameter 27 mm
Technical Parameters
Operating Frequency: 13.56 MHz Communication Protocol:ISO/IEC 14443-A Serial Number (UID): 7 bytes Operating Distance: Up to 100 mm Fast Counter Transaction: < 10 ms Data Transfer: 106 kbit/s Typical Ticketing Transaction: < 35 ms Antenna Etching Mode: Aluminum etching (30 μm) + PET (38 μm) + AL bridge (10 μm)
Chip Characteristics
Chip Manufacturer:NXP® Chip Type:MIFARE Ultralight® EV1 User Memory: 384 bits EEPROM: 640 bits OTP Area: 32 bits Password Protection: 32 bits Write Endurance: 100,000 times Data Retention Time: 10 years
Additional Information
Operating Environment: Label attach: 10°C ~ 40°C, 20% ~ 80% RH After label attached: -20°C ~ 50°C, 20% ~ 80% RH Storage Environment: 18°C ~ 28°C, 40% ~ 60% RH Handling Precautions: 1. Do not bend. 2. Keep away from water and collision. 3. Labels with black-dot marks are bad ones, do not use.
Packaging
Packing Format: Packed in roll, vacuumed packing in ESD bag Roll OD: Max. 181 mm Core ID: 3 inch (76.20 ± 0.50 mm) Packing Quantity: 1000 Pcs/roll, per roll 0.406 kg
The NXP MIFARE Ultralight® C RFID cards are made with Photo-quality standard PVC/PET in the size of CR80, which are suitable for use with most direct thermal or thermal transfer card printers.
As a leading RFID hardware manufacturer for over a decade, we are committed to delivering unparalleled quality at competitive prices. Our advanced production facilities and stringent quality control ensure that every product meets the highest standards.
EXPERTISE & INNOVATION
Our expert team drives innovation in RFID technology. Whether you need custom solutions or cutting-edge products, we provide advanced and effective RFID solutions tailored to your needs.
EFFICIENT & RELIABILITY
We offer reliable global shipping with in-stock items delivered within 1-3 business days in North America, Europe, and the Asia Pacific. Our proven track record ensures your satisfaction every time.
Round RFID Label Dia 30mm NXP MIFARE Ultralight® EV1 | ISO14443A
$42.00 – $1,015.00Price range: $42.00 through $1,015.00
The Ø30mm NXP MIFARE Ultralight® EV1 RFID label is a high-performance tag made of durable PET material, with a built-in NXP MIFARE Ultralight® EV1 chip, compliant with ISO14443A standard ensuring fast and secure data transmission. Its compact design is ideal for a variety of applications, and it protects your contactless operations with enhanced security features and powerful performance.
Description
Features
Frequency Band
HF 13.56 MHz
Chip Type
NXP MIFARE Ultralight® EV1
International Standard
ISO/IEC 14443-A
EEPROM
640 bits
User Memory
384 bytes
Certificate
WEEE compliant
Specifications
Physical Specifications
Material: PET + 3M adhesive
Label Size: Diameter 30 mm
Antenna Size: Diameter 27 mm
Technical Parameters
Operating Frequency: 13.56 MHz
Communication Protocol: ISO/IEC 14443-A
Serial Number (UID): 7 bytes
Operating Distance: Up to 100 mm
Fast Counter Transaction: < 10 ms
Data Transfer: 106 kbit/s
Typical Ticketing Transaction: < 35 ms
Antenna Etching Mode: Aluminum etching (30 μm) + PET (38 μm) + AL bridge (10 μm)
Chip Characteristics
Chip Manufacturer: NXP®
Chip Type: MIFARE Ultralight® EV1
User Memory: 384 bits
EEPROM: 640 bits
OTP Area: 32 bits
Password Protection: 32 bits
Write Endurance: 100,000 times
Data Retention Time: 10 years
Additional Information
Operating Environment:
Label attach: 10°C ~ 40°C, 20% ~ 80% RH
After label attached: -20°C ~ 50°C, 20% ~ 80% RH
Storage Environment:
18°C ~ 28°C, 40% ~ 60% RH
Handling Precautions:
1. Do not bend.
2. Keep away from water and collision.
3. Labels with black-dot marks are bad ones, do not use.
Packaging
Packing Format: Packed in roll, vacuumed packing in ESD bag
Roll OD: Max. 181 mm
Core ID: 3 inch (76.20 ± 0.50 mm)
Packing Quantity: 1000 Pcs/roll, per roll 0.406 kg
NXP MIFARE Ultralight®
NXP MIFARE Classic®
cr80 | 86×54×0.88mm
MIFARE Ultralight® C
The NXP MIFARE Ultralight® C RFID cards are made with Photo-quality standard PVC/PET in the size of CR80, which are suitable for use with most direct thermal or thermal transfer card printers.
