The 80×50mm ST25TV02KC NFC Wet Inlay is a high-performance NFC tag solution featuring STMicroelectronics ST25TV02KC chip, designed for smart applications that require large size and high reliability. Its 80×50mm design provides a larger antenna area for improved read range and performance and supports ISO/IEC 15693 and NFC Forum Type 5 standards for fast, efficient data transfer. With 2560 bits of EEPROM, the tag can store data in various formats, making it suitable for complex scenarios. To ensure data security, the product supports 32-bit password protection with dynamic authentication and anti-counterfeiting features for superior product protection. The wet inlay design (with an adhesive) enables quick and easy installation on paper, plastic or other surface materials. Compatible with all NFC-enabled smart devices, it can be seamlessly integrated into various application scenarios, such as logistics management, asset tracking, smart packaging and interactive marketing, providing an efficient and reliable digital solution for enterprises.
Chip Manufacturer:ST Microelectronics Chip Type: ST25TV02KC Data Retention: 60 years EEPROM: 2560 bits Write Endurance: 100,000 cycles Reading Rate: 26 kbit/s Augmented NDEF: Yes Digital Signature: TruST25 Tamper Detect Capability: Support 32-bit Encrypted Password: Support Kill Mode and Untraceable Mode: Support
Additional Information
Operating Environment: Label attach: 10°C ~ 40°C, 20% ~ 80% RH After label attached: -20°C ~ 50°C, 20% ~ 80% RH Storage Environment: 18°C ~ 28°C, 40% ~ 60% RH Handling Precautions: 1. Do not bend. 2. Keep away from water and collision. 3. Inlays with black-dot marks are bad ones, do not use.
Packaging
Packing Format: Packed in roll, vacuumed packing in ESD bag Roll OD: Max. 260 mm Core ID: 3 inch (76.20 ± 0.50 mm) Packing Quantity: 2000 Pcs/roll, per roll 1.845 kg
Loooking for More Products? search or use the categories
As a leading RFID hardware manufacturer for over a decade, we are committed to delivering unparalleled quality at competitive prices. Our advanced production facilities and stringent quality control ensure that every product meets the highest standards.
EXPERTISE & INNOVATION
Our expert team drives innovation in RFID technology. Whether you need custom solutions or cutting-edge products, we provide advanced and effective RFID solutions tailored to your needs.
EFFICIENT & RELIABILITY
We offer reliable global shipping with in-stock items delivered within 1-3 business days in North America, Europe, and the Asia Pacific. Our proven track record ensures your satisfaction every time.
ST25TV02KC PET NFC Wet Inlay 80×50mm
$36.00 – $949.00Price range: $36.00 through $949.00
The 80×50mm ST25TV02KC NFC Wet Inlay is a high-performance NFC tag solution featuring STMicroelectronics ST25TV02KC chip, designed for smart applications that require large size and high reliability. Its 80×50mm design provides a larger antenna area for improved read range and performance and supports ISO/IEC 15693 and NFC Forum Type 5 standards for fast, efficient data transfer. With 2560 bits of EEPROM, the tag can store data in various formats, making it suitable for complex scenarios. To ensure data security, the product supports 32-bit password protection with dynamic authentication and anti-counterfeiting features for superior product protection. The wet inlay design (with an adhesive) enables quick and easy installation on paper, plastic or other surface materials. Compatible with all NFC-enabled smart devices, it can be seamlessly integrated into various application scenarios, such as logistics management, asset tracking, smart packaging and interactive marketing, providing an efficient and reliable digital solution for enterprises.
Description
Features
Frequency Band
HF 13.56 MHz
Chip Type
ST Microelectronics ST25TV02KC
International Standard
ISO/IEC 15693, NFC Forum Type 5
Specifications

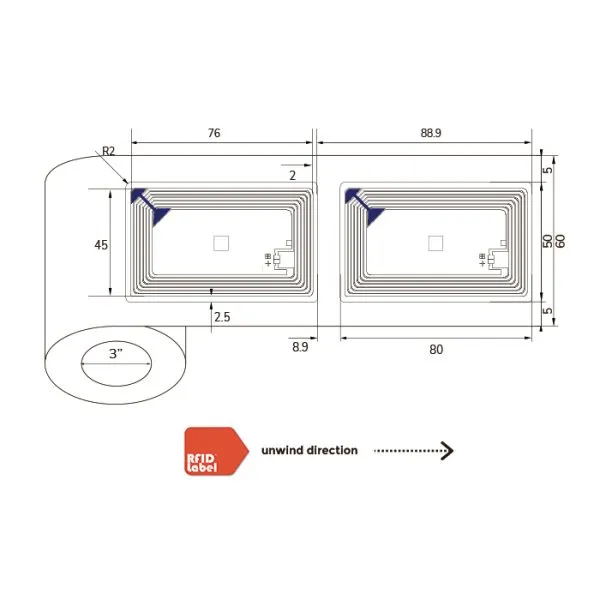

Physical Specifications
Material: PET
Label Size: 80×50 mm
Antenna Size: 76×45 mm
Technical Parameters
Operating Frequency: 13.56 MHz
Communication Protocol:
ISO/IEC 15693, NFC Forum Type 5
Capacitance: 23 pF
Operating Mode: Passive
Chip Characteristics
Chip Manufacturer: ST Microelectronics
Chip Type: ST25TV02KC
Data Retention: 60 years
EEPROM: 2560 bits
Write Endurance: 100,000 cycles
Reading Rate: 26 kbit/s
Augmented NDEF: Yes
Digital Signature: TruST25
Tamper Detect Capability: Support
32-bit Encrypted Password: Support
Kill Mode and Untraceable Mode: Support
Additional Information
Operating Environment:
Label attach: 10°C ~ 40°C, 20% ~ 80% RH
After label attached: -20°C ~ 50°C, 20% ~ 80% RH
Storage Environment:
18°C ~ 28°C, 40% ~ 60% RH
Handling Precautions:
1. Do not bend.
2. Keep away from water and collision.
3. Inlays with black-dot marks are bad ones, do not use.
Packaging
Packing Format: Packed in roll, vacuumed packing in ESD bag
Roll OD: Max. 260 mm
Core ID: 3 inch (76.20 ± 0.50 mm)
Packing Quantity: 2000 Pcs/roll, per roll 1.845 kg
