UHF 5-dBi RFID Antenna ISO 18000-6C
$69.00
The UHF RFID antenna 5dBi features a high front-to-back ratio, narrow sidelobes, and a 5dBi gain, ensuring stable performance. It enables accurate and rapid multi-label reading and writing with a moderate read-write distance. Despite its small size, lightweight, and low profile, it provides high data security, making installation convenient.
Description
Features
Frequency Band
UHF 860~960 MHz
International Standard
ISO/IEC 18000-6C, EPC C1G2
IP Rating
IP67
Gain Values
5 dBi
Wind resistance
60 m/s
Installation method
Pole-mounting or wall-mounted
Specifications
Physical Specifications
Dimensions: 145×145×20 mm
Weight: 0.73 kg
Shell material: ABS
Radiation plate material: Aluminum
Interface Form: SMA female
IP rating: IP67
Installation
Installation: Pole-mounting or wall-mounted
Diameter of support rod: ϕ30-ϕ50 mm
Technical Parameters
Frequency: 865~868 MHz | 902~928 MHz
Protocol: ISO/IEC 18000-6C, EPC C1G2
Horizontal Angle: 80°
Vertical Angle: 70°
Polarization: Circular Polarization(right-handed)
Standing Wave Ratio: ≤ 1.3
Gain Values: 5 dBi
Antenna front-to-back ratio: ≥ 17dB
Characteristic impedance: 50Ω
Maximum input power: 20W
Environmental Spec
Operating Limits: -40°C ~ 60°C, DC grounding
Wind Resistance: 60 m/s

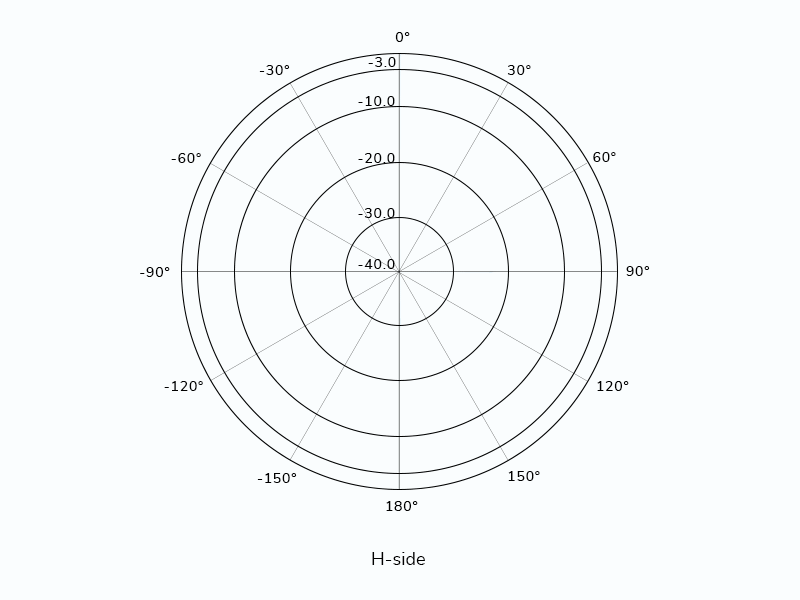

Reading Range H-side

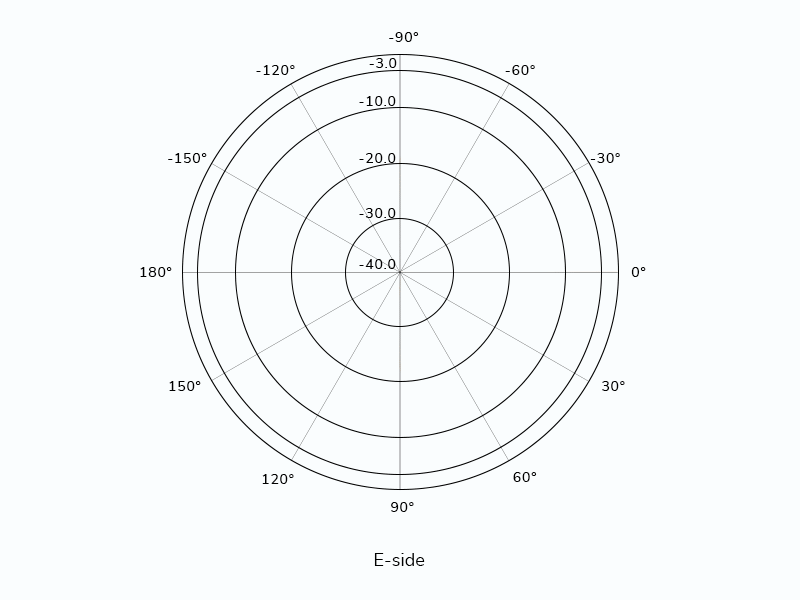

Reading Range E-side
