UHF RFID Ceiling-Mount Reader with Light & Sound Alarm
$846.00
The RFID Ceiling-Mount Reader offers an ultra-thin, ceiling-mounted design with integrated antennas and advanced dual-sensing multi-tag reading. Its space-saving form allows easy installation, while built-in sound and light alarms detect unauthorized tags, enabling fully automated item entry and exit. Ideal for warehouse logistics, retail inventory, and asset tracking, it rapidly identifies large batches of tags to streamline inbound and outbound processes.
Development Languages: JAVA, C# Secondary Development: SDK
Technical Parameters
Communication Protocol:ISO/IEC 18000-6B/C, EPC Class 1 Gen 2 Operating Frequency: UHF 840-960 MHz Power: 20W (Output power 33dBm) Voltage: DC 12V/5A Antenna Quantity: 2 sets of narrow beam antennas, with the antenna beam angle in the channel door direction ≤45° Operating Mode: Fixed frequency/Frequency hopping (optional) Communication Interface: Ethernet communication, RJ45 (WiFi optional) Baud Rates: 9600,19200,115200(default),460800 optional Built-in Antenna Polarization: Circular polarization Sound and light alarm: Built-in buzzer with red and green light strips Engine: Based on Impinj®R2000 Read/Write Method: Supports bulk read/write RF Output Power (Port): 33dBm±1dBm(MAX) Channel Occupancy Bandwidth: <200KHz Frequency Stability: ≤±20ppm Output Power Adjustment: 1 dB step Tag Recognition Speed: 500 times/second Recognition Range: ≥10m (adjustable), front and rear range ≤90cm (adjustable) Communication Protocol: TCP/IP Transport Protocol: CP, HTTP, MQTT Network Interface Communication Speed: 10M/100M adaptive Data storage control board: 3,000 entries (standard)/70,000 entries Tag legitimacy filtering function: Up to 6 sets of EPC filtering rules RSSI: Signal strengeth detection High-density Reading and Writing: Support Antenna Standing Wave Detction: Support Firmware Online Upgrades: Support Tag Data Filtering: Support Channel Door Pperation Status and Hardware Faiure Reporting Function: Support
As a leading RFID hardware manufacturer for over a decade, we are committed to delivering unparalleled quality at competitive prices. Our advanced production facilities and stringent quality control ensure that every product meets the highest standards.
EXPERTISE & INNOVATION
Our expert team drives innovation in RFID technology. Whether you need custom solutions or cutting-edge products, we provide advanced and effective RFID solutions tailored to your needs.
EFFICIENT & RELIABILITY
We offer reliable global shipping with in-stock items delivered within 1-3 business days in North America, Europe, and the Asia Pacific. Our proven track record ensures your satisfaction every time.
UHF RFID Ceiling-Mount Reader with Light & Sound Alarm
$846.00
The RFID Ceiling-Mount Reader offers an ultra-thin, ceiling-mounted design with integrated antennas and advanced dual-sensing multi-tag reading. Its space-saving form allows easy installation, while built-in sound and light alarms detect unauthorized tags, enabling fully automated item entry and exit. Ideal for warehouse logistics, retail inventory, and asset tracking, it rapidly identifies large batches of tags to streamline inbound and outbound processes.
Description
Features
Frequency Band
UHF 840-960 MHz
Engine
Based on Impinj® R2000
International Standard
ISO/IEC 18000-6B/C, EPC Class 1 Gen 2
Specifications
Physical Specifications
Material : Aluminum profile frame, acrylic panel

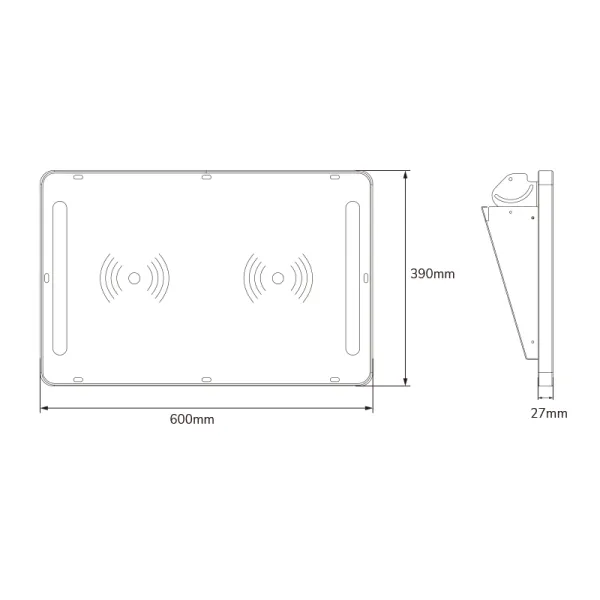

Appearance Dimensions : 27×600×390 mm
Bracket Dimensions: 110×120×110 mm
Weight: 4 kg
Addition Information
Operating Environment : -20°C~60°C, 5%~95% RH, non-condensing
Storage Environment : 18°C~28°C, 40%~60% RH, non-condensing
Development Support
Development Languages: JAVA, C#
Secondary Development: SDK
Technical Parameters
Communication Protocol: ISO/IEC 18000-6B/C, EPC Class 1 Gen 2
Operating Frequency: UHF 840-960 MHz
Power: 20W (Output power 33dBm)
Voltage: DC 12V/5A
Antenna Quantity: 2 sets of narrow beam antennas, with the antenna beam angle in the channel door direction ≤45°
Operating Mode: Fixed frequency/Frequency hopping (optional)
Communication Interface: Ethernet communication, RJ45 (WiFi optional)
Baud Rates: 9600,19200,115200(default),460800 optional
Built-in Antenna Polarization: Circular polarization
Sound and light alarm: Built-in buzzer with red and green light strips
Engine: Based on Impinj®R2000
Read/Write Method: Supports bulk read/write
RF Output Power (Port): 33dBm±1dBm(MAX)
Channel Occupancy Bandwidth: <200KHz
Frequency Stability: ≤±20ppm
Output Power Adjustment: 1 dB step
Tag Recognition Speed: 500 times/second
Recognition Range: ≥10m (adjustable), front and rear range ≤90cm (adjustable)
Communication Protocol: TCP/IP
Transport Protocol: CP, HTTP, MQTT
Network Interface Communication Speed: 10M/100M adaptive
Data storage control board: 3,000 entries (standard)/70,000 entries
Tag legitimacy filtering function: Up to 6 sets of EPC filtering rules
RSSI: Signal strengeth detection
High-density Reading and Writing: Support
Antenna Standing Wave Detction: Support
Firmware Online Upgrades: Support
Tag Data Filtering: Support
Channel Door Pperation Status and Hardware Faiure Reporting Function: Support
