In the world of RFID technology, RAIN RFID has become a standard widely adopted across various industries like retail, logistics, healthcare, and more.
So, what exactly is RAIN RFID, and why has it become so popular in these sectors? To understand RAIN RFID, we need to look at its role in automating and enhancing the accuracy of item tracking, which is a key challenge for many businesses today.
What is RAIN RFID?
RAIN RFID refers to a subset of UHF (Ultra High Frequency) RFID technology. The term “RAIN” stands for RAdio frequency IdentificatioN, and it was coined to showcase the technology’s ability to link physical items to the digital world through wireless networks, particularly cloud-based systems.
By complying with the ISO 18000-63 standard, RAIN RFID enables businesses to track and manage items without needing line-of-sight communication. This is a significant upgrade from traditional barcode systems, which require direct scanning and have more limited data storage and automation capabilities.
1. Introduction to RAIN RFID Technology
RAIN RFID operates using UHF radio frequencies, typically in the range of 860 MHz to 960 MHz. The technology utilizes radio waves to communicate between a reader (which sends and receives signals) and a tag (which contains a microchip with an antenna).
Unlike LF (Low Frequency) or HF (High Frequency) RFID technologies, RAIN RFID can operate over longer distances, sometimes reaching up to 15 meters or more, depending on the environment and the quality of the RFID system used.
The rapid growth of RAIN RFID can be attributed to its versatility. It is employed across various industries for tracking and identification purposes and can enhance operational efficiency by automating processes that would otherwise require manual intervention. Moreover, because RAIN RFID does not require direct visual contact between the reader and the tagged item, it allows businesses to streamline their operations. For instance, retail companies can use RAIN RFID to manage inventory automatically, improving stock accuracy and reducing shrinkage.
Another significant factor is the cost-effectiveness of RAIN RFID. Unlike other RFID systems, RAIN RFID tags are passive, meaning they do not have an internal power source. This allows them to be produced at a relatively low cost, enabling businesses to tag thousands or even millions of items affordably.
2. Why Impinj is a Leader in RAIN RFID?
One of Impinj’s most notable innovations is the M700 series, representing a new generation of tag chips that elevate RAIN RFID performance to the next level. These chips are optimized for high-speed operations, durable in harsh environments, and feature enhanced security protocols to safeguard data. The M700 series has pushed the limits of RAIN RFID chips in terms of sensitivity, security, and memory capacity.
3. The Importance of Tag Chips in RFID Systems
At the core of any RAIN RFID system is the tag chip, the component that stores data, communicates with readers, and enables the tracking and identification of items. The tag chip is crucial because its performance directly impacts the overall effectiveness of the RFID system. A well-designed tag chip can process data more efficiently, withstand environmental challenges, and offer better data security.
The role of the tag chip in an RFID system can be broken down into three main functions:
- Storing Data: Every tag chip contains a unique Electronic Product Code (EPC) that identifies the item it’s attached to. This EPC can store not only basic product information but also additional data, such as batch numbers, production dates, or shipping details.
- Communicating with the Reader: A tag chip must be able to transmit data accurately and consistently to the RFID reader, even in the face of obstacles like interference from other devices or challenging environmental conditions (e.g., high temperatures, moisture, or proximity to metal).
- Security: In applications where data protection is crucial, such as healthcare or finance, the tag chip’s ability to safeguard stored information from unauthorized access is vital. Advanced RFID systems, like those in the Impinj M700 series, feature enhanced security protocols to prevent data theft, cloning, or tampering.

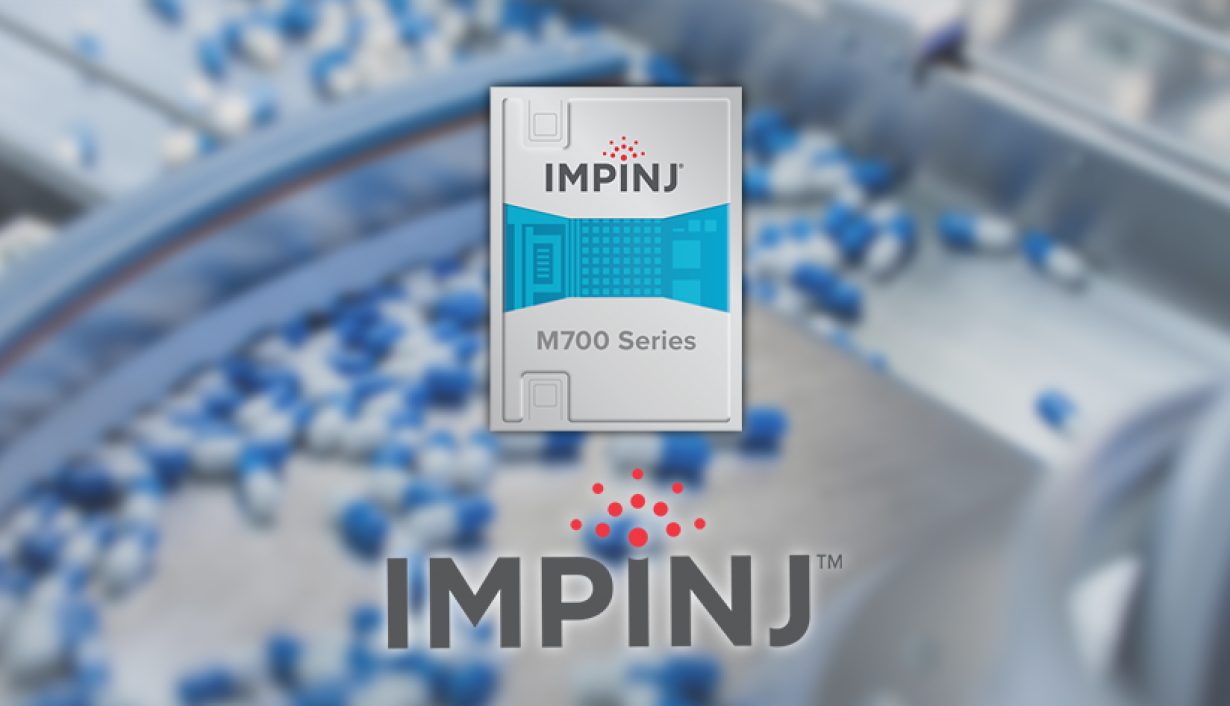

Impinj M700 Series Product Line Breakdown
1. Model Breakdown
The Impinj M700 series consists of several models, each tailored to specific use cases, offering flexibility in terms of EPC memory, user memory, and read sensitivity. These differences allow users to select the appropriate tag chip depending on the environment, operational demands, and the nature of the assets being tracked. Here’s a breakdown of the most significant models in the M700 series:
- M730: This model features 128 bits of EPC memory but no user memory, making it an ideal choice for applications that focus solely on item identification. Its strong read sensitivity of -24 dBm ensures reliable reading, even in crowded spaces.
- M750: This model provides 96 bits of EPC memory and 32 bits of user memory, offering slightly more flexibility for use cases that require additional data to be stored.
- M770 & M775: These models balance both 128 bits of EPC memory and 32 bits of user memory. The M770 and M775 offer solid performance in environments where both identifier and additional data need to be stored on the tag. The chips also feature strong -24 dBm read sensitivity.
- M780: With 512 bits of user memory and 128 bits of EPC memory, this model is designed for more data-intensive applications. Additionally, its slightly improved -23.5 dBm read sensitivity provides an edge in environments with higher interference levels.
- M781: Similar to the M780, but with more advanced security and authentication features, the M781 is tailored for applications where privacy and data protection are paramount.
Additionally, the M700 series introduces several new features that enhance performance in specific environments. These include Impinj AutoTune™, which allows the chip to automatically adjust its radio frequency tuning to match the surrounding environment, and Enduro™ bonding, which increases the durability of the tag chip in rugged environments.
2. Security and Privacy Features
As RFID technology becomes more widespread, the need for robust security and privacy protection has grown significantly. Businesses must ensure that the data stored on RFID tags is protected from unauthorized access, cloning, or tampering. The Impinj M700 series addresses these concerns with a suite of advanced security features.
- The Role of Access/Kill Passwords
Access and kill passwords are a fundamental security feature in the M700 series. These passwords ensure that only authorized individuals can encode the tags.
- Protected Mode and Unkillable Mode
Protected Mode provides even stronger security measures by encrypting the data on the tag and limiting access to authorized readers only.
Unkillable Mode, as previously mentioned, prevents the accidental or malicious deactivation of RFID tags. This feature ensures that tags remain operational throughout their entire lifecycle, which is particularly useful in asset tracking or industrial applications where the tag needs to remain active for extended periods.
- Short Range Untraceable Features
The Short Range Untraceable feature adds another layer of privacy by making the tag untraceable over long distances, ensuring that only nearby authorized readers can detect and interact with the tag.
Detailed Breakdown of Specifications
In this section, we’ll take a deeper dive into the core technical specifications that define the M700 series and explore how they impact different industries and applications.
- EPC Memory and User Memory
When selecting an RFID tag, memory is one of the most critical considerations. The Electronic Product Code (EPC) memory stores the unique identifier that corresponds to the item the tag is attached to. User memory, on the other hand, provides additional storage for application-specific data, such as product batch numbers, expiration dates, or even custom metadata used in logistics or healthcare.
For industries like retail, models such as the M730 and M750—which offer 128 bits and 96 bits of EPC memory respectively—are generally sufficient for item-level tagging. These models provide enough space to store the necessary product identifiers, allowing retailers to quickly and accurately track individual items.
In logistics and supply chain management, models like the M775, with its 32 bits of user memory, are preferred because the additional memory can be used to store shipping details, packaging information, or handling instructions. This allows for more comprehensive tracking and management of goods as they move through different stages of the supply chain.
For industries like healthcare or pharmaceuticals, the M780 with its 512 bits of user memory is ideal. In these applications, the need for additional memory is crucial for storing sensitive information such as patient IDs, medical device maintenance logs, or drug batch numbers. The larger user memory allows healthcare professionals to access critical information directly from the tag, streamlining processes and improving patient safety.
In all cases, the EPC memory ensures that items are uniquely identifiable, while the user memory offers additional customization to suit the specific needs of the application.
- Read Sensitivity
Read sensitivity determines how easily an RFID tag can be read by an RFID reader, and it is a key factor in the performance of RFID systems.
In the M700 series, the -24 dBm read sensitivity found in models like the M730, M750, and M770 ensures that tags can be read from longer distances and in more challenging environments, such as in a densely packed warehouse or a crowded retail store.
For industries like logistics, where items are often scanned in bulk or moving on conveyor belts, having a high read sensitivity is critical. The M700 series ensures that tags can be read quickly and accurately, even in fast-paced environments.
The M780 stands out with a slightly improved -23.5 dBm read sensitivity, making it an excellent choice for applications where interference is a concern, such as in medical facilities where equipment and devices are often located close to metal objects or electronic equipment.
High read sensitivity also means better performance in environments where line-of-sight reading is not possible. For example, in retail backrooms or storage areas, where products are stacked or placed on shelves, the M700 series can still reliably detect and read tags.
- Advanced Features: Impinj AutoTune™, Protected Mode, and Unkillable Mode
One of the most notable innovations in the M700 series is the introduction of the Impinj AutoTune™ feature. This feature automatically adjusts the chip’s radio frequency (RF) tuning to match the environment. For instance, in environments with varying materials—such as metal or liquids—that typically interfere with RFID performance, AutoTune ensures that the chip can still be read with high accuracy.
Protected Mode is another critical feature introduced in the M700 series. This mode allows businesses to protect the data on their RFID tags, ensuring that only authorized readers can access or modify the stored information.
Lastly, Unkillable Mode ensures the longevity of RFID tags in situations where tags need to remain operational for extended periods or even indefinitely. Unlike traditional RFID tags that have a “kill” command to permanently deactivate the tag, Unkillable Mode prevents accidental or unauthorized deactivation.
Future Developments in RFID and Impinj’s chips
As we look towards the future of RFID technology, it’s clear that the advancements made by companies like Impinj are paving the way for even more sophisticated and integrated systems. The M700 series is already a testament to how far RAIN RFID has come, but there are several trends and technological advancements on the horizon that will shape the next generation of RFID solutions.
- The Integration of Edge Computing Capabilities
One of the most exciting trends in RFID technology is the integration of edge computing capabilities.
In traditional RFID systems, tags simply transmit data to a central reader, which then processes the information. However, with edge computing, RFID tags could potentially perform more complex processing tasks directly on the tag itself. This would allow for real-time data analysis and decision-making at the point of contact, reducing the need for constant communication with central servers.
- Evolution of BAP RFID Tags
Another development to watch is the evolution of battery-assisted passive (BAP) RFID tags. Currently, the vast majority of RAIN RFID tags are passive, meaning they do not have an internal power source and rely on the energy emitted by the RFID reader to power their communication. While this makes them inexpensive and scalable, there are limitations in terms of read range and functionality. BAP tags, which incorporate a small battery to enhance the power of the tag, could provide the best of both worlds by extending read ranges and enabling more robust data storage while maintaining the cost advantages of passive tags.
- Miniaturization of RFID Tags
The miniaturization of RFID tags is also a significant trend. As the technology advances, RFID tags are becoming smaller, allowing them to be embedded in a wider variety of products and materials.
Conclusion
The Impinj M700 series represents the future of RAIN RFID, offering unmatched performance, scalability, and security. Its ability to adapt to various industry needs, combined with its focus on data integrity, scalability, and long-term durability, makes it an ideal solution for businesses looking to future-proof their RFID investments.
If you’re interested in learning more about RFID label solutions after reading this article, or if you would like to inquire about specific RFID label products, we invite you to visit rfidlabel.com. Our team is ready to assist you with detailed information and product recommendations to meet your specific business needs. rfidlabel.com is your go-to resource for the latest in RFID technology.
FAQs
1. What is RAIN RFID? How is it different from traditional RFID?
RAIN RFID is a type of RFID technology based on the UHF frequency range (860-960 MHz), allowing tags to be read over longer distances, up to 15 meters. Compared to traditional low-frequency or high-frequency RFID, RAIN RFID offers faster reading speeds, broader coverage, and the ability to read multiple tags simultaneously.
2. How does the “AutoTune™” technology in the Impinj M700 series work?
Impinj’s AutoTune™ technology allows the tag chip to automatically adjust its RF tuning based on the surrounding environment (such as metal or liquids). Traditional RFID tags tend to experience degraded performance when near metal or liquids, but AutoTune™ can detect these environmental changes and make adjustments to ensure stable and reliable tag reading performance in various physical settings.
3. How does the Impinj M700 series tag chip ensure data security?
The Impinj M700 series ensures data security through multiple layers of security features, including Protected Mode, access/kill password functionality, and compliance with the GS1 EPCglobal Gen2v2 standard. Protected Mode encrypts tag data, ensuring that only authorized devices can access it. The access and kill passwords prevent unauthorized devices from reading or encouding the tag, safeguarding the privacy and integrity of the data.
