Avery Dennison® ARC Certified 387 NXP UCODE® 9 Coated Paper RFID Label AD-387-U9
$104.00 – $492.00Price range: $104.00 through $492.00
Retailers can use this ARC-certified RFID label for Dillard’s to efficiently record clothing item information and prevent brand counterfeiting. Embedded with a high-performance RFID chip, the data can be read by RFID readers and transmitted to backend systems for analysis and storage. Compliant with EPCglobal Gen2v2 and ISO/IEC 18000-6C standards, it is specially designed for apparel, retail, and logistics, and widely applied in supply chain management, inventory control, and brand protection, supporting integration into large retail chains.
Description
Features
Frequency Band
UHF 860~960 MHz
Chip Type
NXP UCODE® 9
International Standard
ISO/IEC 18000-6C, EPCglobal Gen2v2.1
EPC Memory
96 bits
TID Memory
48 bits
Max. Read Range (2W ERP FCC)
16 m
Specifications
Physical Specifications
Material: Coated Paper

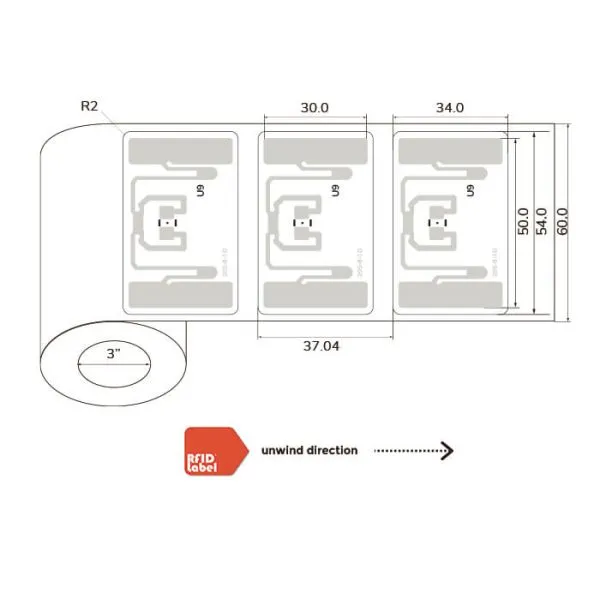

Size: 54×34 mm
Antenna Size: 50×30 mm
Technical Parameters
Operating Frequency: 860~960 MHz
Communication Protocol:
ISO/IEC 18000-6C, EPCglobal Gen2v2.1
Read Range:
Up to 18 m (ETSI standard)
Up to 16 m (FCC standard)
ESD Voltage Immunity: Max. 2000V
Operating mode: Passive
Chip Characteristics
Chip Manufacturer: NXP®
Chip Type: UCODE® 9
Data Retention: 20 years
EPC memory: 96 bits
User memory: 0 bits
TID memory: 48 bits
Reserved Memory:
Access Password (0 bit)
Kill Password (32 bits)
Write Endurance: 100,000 times
Read/Write sensitivity:
-16 dBm (ETSI standard)
-15 dBm (FCC standard)
Additional Information
Operating Environment:
Label attach: 10°C ~ 40°C, 20% ~ 80% RH
After label attached: -20°C ~ 50°C, 20% ~ 80% RH
Storage Environment:
18°C ~ 28°C, 40% ~ 60% RH
Handling Precautions:
1. Do not bend.
2. Keep away from water and collision.
3. Labels with black-dot marks are bad ones, do not use.
Packaging
Packing Format: Packed in roll, vacuumed packing in ESD bag
Roll OD Size: Max. 140 mm
Core Size: 3 inch (76.20 ± 0.50 mm)
Packing Quantity: 1000 Pcs/roll
Download & Support AD-387-U9
Reading Range under different frequency
Orientation Sensitivity
Unleashing Precision and Durability ARC Certified NXP UCODE® 9 54×34 mm UHF RFID Label Testing
