Flexible & Printable On-Metal UHF RFID Label Impinj® M730 | 65×35×1 mm
$200.00–$571.00Price range: $200.00 through $571.00
The Flexible & Printable UHF On-Metal RFID Label, equipped with the Impinj® M730 chip, is a high-performance solution designed for reliable use on metal and other challenging materials. Featuring the advanced capabilities of the Impinj® M730, this label ensures strong read sensitivity, quick inventory processing, and stable long-range performance,even on metallic surfaces. In addition, it features an IP68 waterproof rating. Its flexible structure allows it to conform easily to curved, irregular, or uneven surfaces, making it an ideal choice for tracking metal assets such as tools, machinery, IT equipment, and containers.

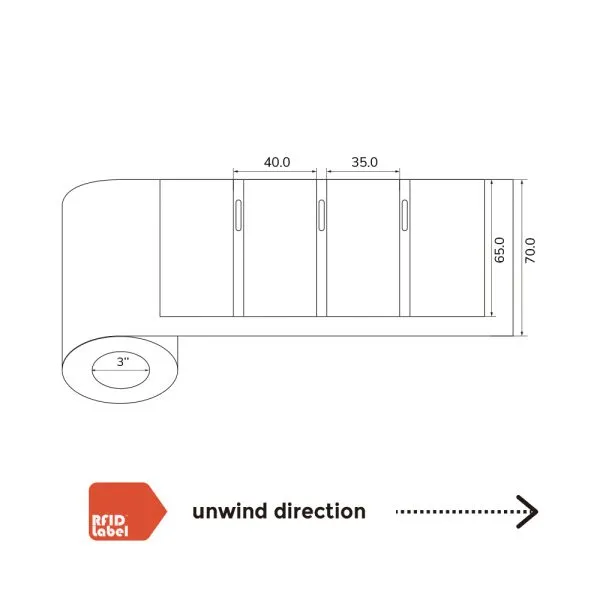

Material: PET & Aluminum Foil & Foam Label Size: 65×35×1 mm (L×W×T)
Technical Parameters
Operating Frequency:902-928 MHz (US) Communication Protocol: ISO/IEC 18000-6C, EPC Global Gen 2v2 Read Range(Fix Reader): FCC(On metal):10.5m Read Range(Handheld Reader): FCC(On metal):5.5m Operating Mode: Passive IP Rating: IP68, test for 5 hours at 1m deep water Support Printer: SATO CL4NX, Zebra ZT411 Silverline, Postek TX3r, etc. Customization Options: Print Logo, Barcode/QR code, Serial Number, Encoding, Designing, etc
Additional Information
Operating Environment: -40°C~85°C Storage Environment: 18°C~28°C,40%~60% RH Handling Precautions: 1. Do not bend. 2. Keep away from collision. 3. Labels with black-dot marks are bad ones, do not use.
Chip Characteristics
Chip Manufacturer:Impinj® Chip Type:Impinj® M730 Data Retention: 50 years EPC Memory:128 bits User Memory: 0 bits TID Memory: 48 bits Write Endurance:10,000 times Read Sensitivity:-24 dBm Write Sensitivity: -21 dBm Access Password:32 bits Kill Password:32 bits Access&Kill Password:Shared 32 bits High Data Integrity: 16 bits CRC Integra™ Data Diagnostics: Support FastID™ High-speed Read Capability:Support TagFocus™ Read Redundancy Prevention:Support Protected Mode:Support
Packaging
Packing Format: Packed in roll, vacuumed packing in ESD bag Roll OD: Max.220mm Core ID:3 inch(76±0.50 mm) Packing Quantity:1500 Pcs/roll.per roll 1.25 kg
Reading Range Under Different Frequency
Tag Power Under Different Frequency
IP68 Rating Test
Adhesion Performance Testing
Loooking for More Products? search or use the categories
As a leading RFID hardware manufacturer for over a decade, we are committed to delivering unparalleled quality at competitive prices. Our advanced production facilities and stringent quality control ensure that every product meets the highest standards.
EXPERTISE & INNOVATION
Our expert team drives innovation in RFID technology. Whether you need custom solutions or cutting-edge products, we provide advanced and effective RFID solutions tailored to your needs.
EFFICIENT & RELIABILITY
We offer reliable global shipping with in-stock items delivered within 1-3 business days in North America, Europe, and the Asia Pacific. Our proven track record ensures your satisfaction every time.
Flexible & Printable On-Metal UHF RFID Label Impinj® M730 | 65×35×1 mm
$200.00 – $571.00Price range: $200.00 through $571.00
The Flexible & Printable UHF On-Metal RFID Label, equipped with the Impinj® M730 chip, is a high-performance solution designed for reliable use on metal and other challenging materials. Featuring the advanced capabilities of the Impinj® M730, this label ensures strong read sensitivity, quick inventory processing, and stable long-range performance,even on metallic surfaces. In addition, it features an IP68 waterproof rating. Its flexible structure allows it to conform easily to curved, irregular, or uneven surfaces, making it an ideal choice for tracking metal assets such as tools, machinery, IT equipment, and containers.
Description
Features
Frequency Band
UHF 902-928 MHz(US)
Chip Type
Impinj® M730
International Standard
ISO/IEC 18000-6C, EPC Global Gen2v2
EPC Memory
128 bits
Read Range (Fixed Reader)
FCC(On metal): 10.5m
Read Range (Handheld Reader)
FCC(On metal): 5.5m
Specifications
Physical Specifications
Material: PET & Aluminum Foil & Foam
Label Size : 65×35×1 mm (L×W×T)
Technical Parameters
Operating Frequency: 902-928 MHz (US)
Communication Protocol: ISO/IEC 18000-6C, EPC Global Gen 2v2
Read Range(Fix Reader): FCC(On metal):10.5m
Read Range(Handheld Reader): FCC(On metal):5.5m
Operating Mode: Passive
IP Rating : IP68, test for 5 hours at 1m deep water
Support Printer : SATO CL4NX, Zebra ZT411 Silverline, Postek TX3r, etc.
Customization Options : Print Logo, Barcode/QR code, Serial Number, Encoding, Designing, etc
Additional Information
Operating Environment: -40°C~85°C
Storage Environment: 18°C~28°C,40%~60% RH
Handling Precautions:
1. Do not bend.
2. Keep away from collision.
3. Labels with black-dot marks are bad ones, do not use.
Chip Characteristics
Chip Manufacturer: Impinj®
Chip Type: Impinj® M730
Data Retention: 50 years
EPC Memory: 128 bits
User Memory: 0 bits
TID Memory: 48 bits
Write Endurance: 10,000 times
Read Sensitivity:-24 dBm
Write Sensitivity: -21 dBm
Access Password: 32 bits
Kill Password: 32 bits
Access&Kill Password: Shared 32 bits
High Data Integrity: 16 bits CRC
Integra™ Data Diagnostics: Support
FastID™ High-speed Read Capability: Support
TagFocus™ Read Redundancy Prevention: Support
Protected Mode: Support
Packaging
Packing Format: Packed in roll, vacuumed packing in ESD bag
Roll OD: Max.220mm
Core ID: 3 inch(76±0.50 mm)
Packing Quantity: 1500 Pcs/roll.per roll 1.25 kg
Reading Range Under Different Frequency
Tag Power Under Different Frequency
IP68 Rating Test
Adhesion Performance Testing
