$200.00–$795.00Price range: $200.00 through $795.00
This 50 x 50mm RFID label features a 40 x 40mm antenna that provides a longer reading distance. The label is embedded with a high-performance Impinj® Monza® M781 chip, which is compliant with international standards ISO/IEC 18000-6C and EPCglobal Gen2v2. This label has a large storage capacity and is secure. It has 512 bits of user memory and 128 bits of EPC memory to enhance data storage capacity. Also, the M781 chip provides data-protected mode and unkillable mode. Ideal for applications in the retail industry, institutional organization, medical industry, logistics, supply chain, and so on.
Chip Manufacturer:Impinj® Chip Type:Monza® M781 Data Retention: 20 years User memory: 512 bits EPC Memory: 128 bits High data integrity: 16-bit CRC Kill/Access Password: 32 bits Omnidirectional reading: Impinj Core3D Antenna Read sensitivity: -23.5 dBm Write sensitivity: -20.5 dBm Write Endurance: 100,000 cycles Protected Mode: Yes Unkillable Mode: Yes
Additional Information
Operating Environment: Label attach: 10°C ~ 40°C, 20% ~ 80% RH After label attached: -20°C ~ 50°C, 20% ~ 80% RH Storage Environment: 18°C ~ 28°C, 40% ~ 60% RH Handling Precautions: 1. Do not bend. 2. Keep away from water and collision. 3. Labels with black-dot marks are bad ones, do not use.
Packaging
Packing Format: Packed in roll, vacuumed packing in ESD bag Roll OD: Max. 8.27 inch (About 210 mm) Core ID: 3 inch (76.20 ± 0.50 mm) Packing Quantity: 1000 Pcs/roll, per roll 0.873 kg
Loooking for More Products? search or use the categories
As a leading RFID hardware manufacturer for over a decade, we are committed to delivering unparalleled quality at competitive prices. Our advanced production facilities and stringent quality control ensure that every product meets the highest standards.
EXPERTISE & INNOVATION
Our expert team drives innovation in RFID technology. Whether you need custom solutions or cutting-edge products, we provide advanced and effective RFID solutions tailored to your needs.
EFFICIENT & RELIABILITY
We offer reliable global shipping with in-stock items delivered within 1-3 business days in North America, Europe, and the Asia Pacific. Our proven track record ensures your satisfaction every time.

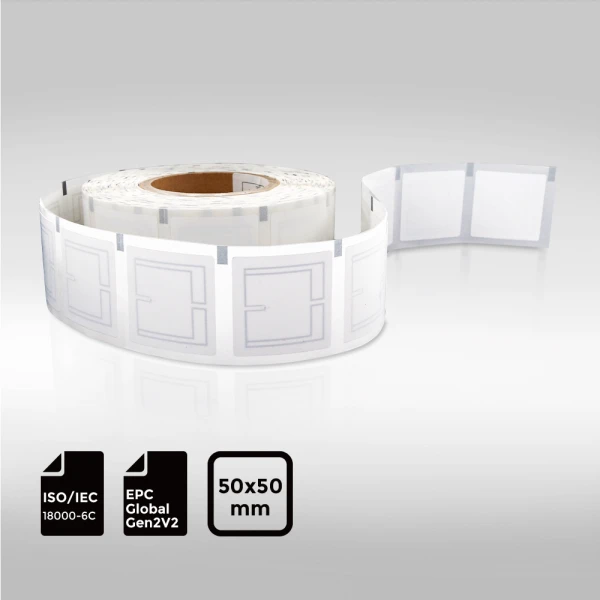

Impinj® Monza® M781 UHF RFID Label 50×50mm
$200.00 – $795.00Price range: $200.00 through $795.00
This 50 x 50mm RFID label features a 40 x 40mm antenna that provides a longer reading distance. The label is embedded with a high-performance Impinj® Monza® M781 chip, which is compliant with international standards ISO/IEC 18000-6C and EPCglobal Gen2v2. This label has a large storage capacity and is secure. It has 512 bits of user memory and 128 bits of EPC memory to enhance data storage capacity. Also, the M781 chip provides data-protected mode and unkillable mode. Ideal for applications in the retail industry, institutional organization, medical industry, logistics, supply chain, and so on.
Description
Features
Frequency Band
UHF 860~960 MHz
Chip Type
Impinj® Monza® M781
International Standard
ISO/IEC 18000-6C, EPCglobal Gen2v2
User Memory
512 bits
EPC Memory
128 bits
Certificate
WEEE compliant
Specifications
Physical Specifications
Material: PP Synthetic Paper

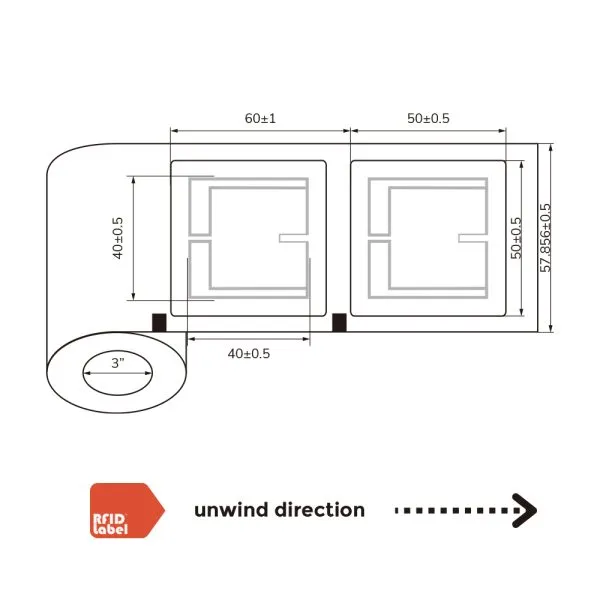

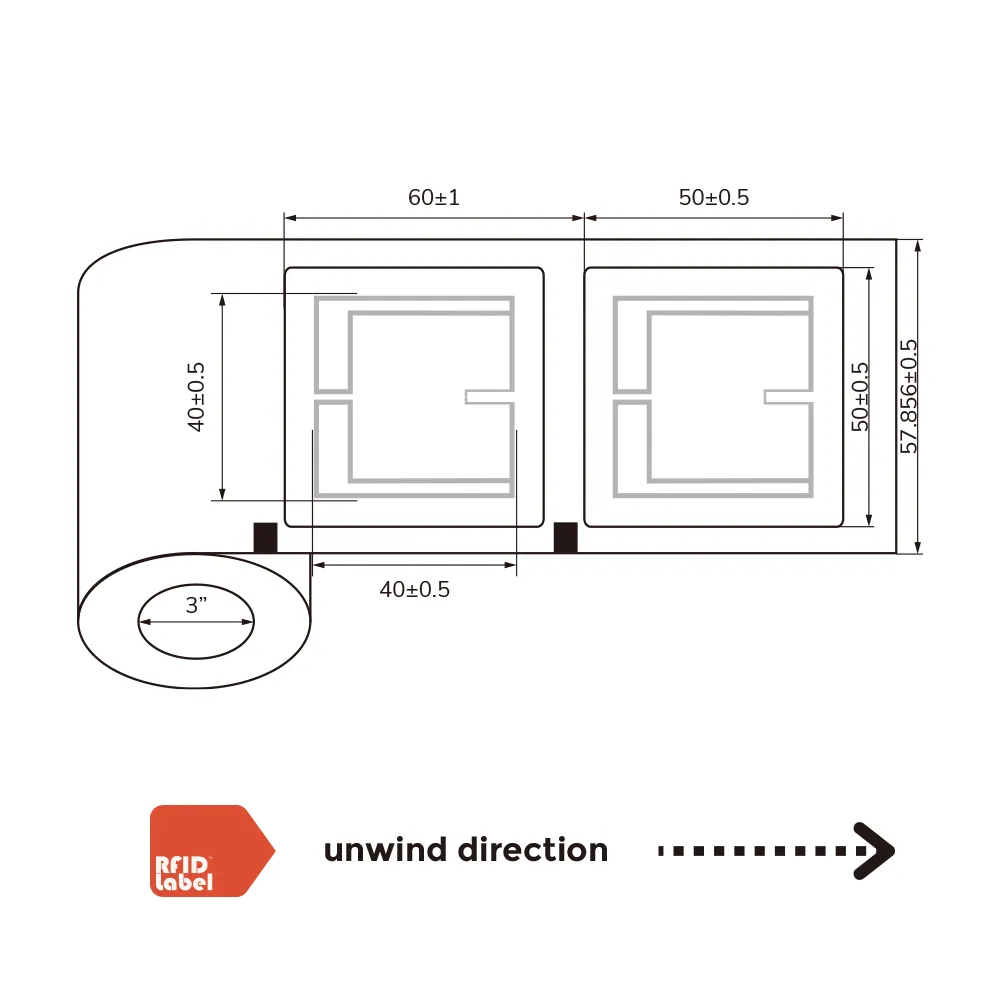

Label Size: 50×50 mm
Inlay Size: 40×40 mm
Technical Parameters
Operating Frequency: 860~960 MHz
Communication Protocol:
ISO/IEC 18000-6C, EPCglobal Gen2v2
Operating mode: Passive
Chip Characteristics
Chip Manufacturer: Impinj®
Chip Type: Monza® M781
Data Retention: 20 years
User memory: 512 bits
EPC Memory: 128 bits
High data integrity: 16-bit CRC
Kill/Access Password: 32 bits
Omnidirectional reading:
Impinj Core3D Antenna
Read sensitivity: -23.5 dBm
Write sensitivity: -20.5 dBm
Write Endurance: 100,000 cycles
Protected Mode: Yes
Unkillable Mode: Yes
Additional Information
Operating Environment:
Label attach: 10°C ~ 40°C, 20% ~ 80% RH
After label attached: -20°C ~ 50°C, 20% ~ 80% RH
Storage Environment:
18°C ~ 28°C, 40% ~ 60% RH
Handling Precautions:
1. Do not bend.
2. Keep away from water and collision.
3. Labels with black-dot marks are bad ones, do not use.
Packaging
Packing Format: Packed in roll, vacuumed packing in ESD bag
Roll OD: Max. 8.27 inch (About 210 mm)
Core ID: 3 inch (76.20 ± 0.50 mm)
Packing Quantity: 1000 Pcs/roll, per roll 0.873 kg
