Integrate high-performance tracking with our ⌀18mm ISO14443A 13.56MHz NFC Label, engineered with the advanced NXP NTAG® 213 chip. Boasting a fast data transfer rate and 144 bytes of user memory, this ultra-compact label is optimized for multiple applications, including asset tracking, smart advertising, and secure event access. With built-in anti-collision features and password protection, it’s not just small—it’s smart.
Material: Coated Paper Label Size: Diameter 18 mm Antenna Size: Diameter 15 mm
Technical Parameters
Operating Frequency: 13.56 MHz Communication Protocol: ISO/IEC 14443-A, NFC Forum Type 2 Read Range(on-metal): Up to 10 cm Capacitance: 50 pF Operating mode: Passive
Chip Characteristics
Chip Manufacturer:NXP® Chip Type:NTAG® 213 Data Retention: 10 years User memory: 144 bytes UID Memory: 7 bytes Write Endurance: 100,000 cycles Reading Rate: 106 kbit/s High data integrity: 16-bit CRC Anti-Collision Function: Support Password: 32 bits
Additional Information
Operating Environment: Label attach: 10°C ~ 40°C, 20% ~ 80% RH After label attached: -20°C ~ 50°C, 20% ~ 80% RH Storage Environment: 18°C ~ 28°C, 40% ~ 60% RH Handling Precautions: 1. Do not bend. 2. Keep away from water and collision. 3. Labels with black-dot marks are bad ones, do not use.
Packaging
Packing Format: Packed in roll, vacuumed packing in ESD bag< Roll OD: Max. 203.2 mm Core ID: 3 inch (76.20 ± 0.50 mm) Packing Quantity: 1000 Pcs/roll, per roll 0.24 kg
RFID Card | NTAG® 213
The NTAG® 213 RFID card is made with Photo-quality standard PVC sheets in size of CR80, that is suitable for use with most direct thermal or thermal transfer card printers.
As a leading RFID hardware manufacturer for over a decade, we are committed to delivering unparalleled quality at competitive prices. Our advanced production facilities and stringent quality control ensure that every product meets the highest standards.
EXPERTISE & INNOVATION
Our expert team drives innovation in RFID technology. Whether you need custom solutions or cutting-edge products, we provide advanced and effective RFID solutions tailored to your needs.
EFFICIENT & RELIABILITY
We offer reliable global shipping with in-stock items delivered within 1-3 business days in North America, Europe, and the Asia Pacific. Our proven track record ensures your satisfaction every time.
NFC Label ⌀18mm NXP NTAG® 213 | ISO14443A NFC Type 2
$36.00 – $908.00Price range: $36.00 through $908.00
Integrate high-performance tracking with our ⌀18mm ISO14443A 13.56MHz NFC Label, engineered with the advanced NXP NTAG® 213 chip. Boasting a fast data transfer rate and 144 bytes of user memory, this ultra-compact label is optimized for multiple applications, including asset tracking, smart advertising, and secure event access. With built-in anti-collision features and password protection, it’s not just small—it’s smart.
Description
Features
Frequency Band
HF 13.56 MHz
Chip Type
NXP NTAG® 213
International Standard
ISO/IEC 14443-A, NFC Forum Type 2
User Memory
144 bytes
Read Range
Up to 10 cm
Certificate
WEEE compliant

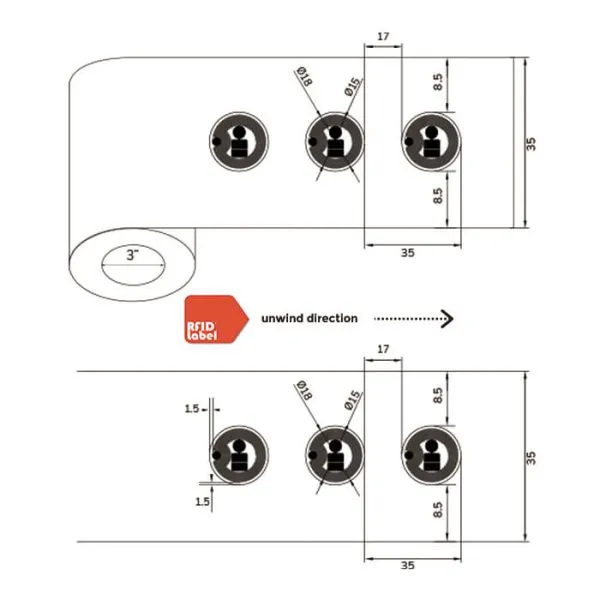

Specifications
Physical Specifications
Material: Coated Paper
Label Size: Diameter 18 mm
Antenna Size: Diameter 15 mm
Technical Parameters
Operating Frequency: 13.56 MHz
Communication Protocol:
ISO/IEC 14443-A, NFC Forum Type 2
Read Range(on-metal): Up to 10 cm
Capacitance: 50 pF
Operating mode: Passive
Chip Characteristics
Chip Manufacturer: NXP®
Chip Type: NTAG® 213
Data Retention: 10 years
User memory: 144 bytes
UID Memory: 7 bytes
Write Endurance: 100,000 cycles
Reading Rate: 106 kbit/s
High data integrity: 16-bit CRC
Anti-Collision Function: Support
Password: 32 bits
Additional Information
Operating Environment:
Label attach: 10°C ~ 40°C, 20% ~ 80% RH
After label attached: -20°C ~ 50°C, 20% ~ 80% RH
Storage Environment:
18°C ~ 28°C, 40% ~ 60% RH
Handling Precautions:
1. Do not bend.
2. Keep away from water and collision.
3. Labels with black-dot marks are bad ones, do not use.
Packaging
Packing Format: Packed in roll, vacuumed packing in ESD bag<
Roll OD: Max. 203.2 mm
Core ID: 3 inch (76.20 ± 0.50 mm)
Packing Quantity: 1000 Pcs/roll, per roll 0.24 kg
RFID Card | NTAG® 213
