Boost your tracking range with our 40x40mm NFC Label, featuring an larger 34x34mm antenna for superior reading distance. Powered by the high-performance NXP NTAG® 213 chip and conforming to ISO14443A NFC Type-2 standards, this label offers not just size but speed and security. Benefit from faster data transfer rates and 144 bytes of user memory for enhanced data storage. Ideal for applications where reading distance matters, such as logistics, asset management, and smart retail solutions.
Material: PP Synthetic paper Size: 40×40 mm Antenna Size: 34×34 mm
Technical Parameters
Operating Frequency: 13.56 MHz Communication Protocol: ISO/IEC 14443-A, NFC Forum Type 2 Read Range(on-metal): Up to 10 cm Capacitance: 50 pF Operating mode: Passive
Chip Characteristics
Chip Manufacturer:NXP® Chip Type:NTAG® 213 Data Retention: 10 years User memory: 144 bytes UID Memory: 7 bytes Write Endurance: 100,000 cycles Reading Rate: 106 kbit/s High data integrity: 16-bit CRC Anti-Collision Function: Support Password: 32-bit
Additional Information
Operating Environment: Label attach: 10°C ~ 40°C, 20% ~ 80% RH After label attached: -20°C ~ 50°C, 20% ~ 80% RH Storage Environment: 18°C ~ 28°C, 40% ~ 60% RH Handling Precautions: 1. Do not bend. 2. Keep away from water and collision. 3. Labels with black-dot marks are bad ones, do not use.
Packaging
Packing Format: Packed in roll, vacuumed packing in ESD bag Roll OD: Max. 203.2 mm Core ID: 3 inch (76.20 ± 0.50 mm) Packing Quantity: 1000 Pcs/roll, per roll 0.555 kg
RFID Card | NTAG® 213
The NTAG® 213 RFID card is made with Photo-quality standard PVC sheets in size of CR80, that is suitable for use with most direct thermal or thermal transfer card printers.
As a leading RFID hardware manufacturer for over a decade, we are committed to delivering unparalleled quality at competitive prices. Our advanced production facilities and stringent quality control ensure that every product meets the highest standards.
EXPERTISE & INNOVATION
Our expert team drives innovation in RFID technology. Whether you need custom solutions or cutting-edge products, we provide advanced and effective RFID solutions tailored to your needs.
EFFICIENT & RELIABILITY
We offer reliable global shipping with in-stock items delivered within 1-3 business days in North America, Europe, and the Asia Pacific. Our proven track record ensures your satisfaction every time.
NFC Label NXP NTAG® 213 40x40mm ISO14443A | NFC type-2
$1,000.00
Boost your tracking range with our 40x40mm NFC Label, featuring an larger 34x34mm antenna for superior reading distance. Powered by the high-performance NXP NTAG® 213 chip and conforming to ISO14443A NFC Type-2 standards, this label offers not just size but speed and security. Benefit from faster data transfer rates and 144 bytes of user memory for enhanced data storage. Ideal for applications where reading distance matters, such as logistics, asset management, and smart retail solutions.
Description
Features
Frequency Band
HF 13.56 MHz
Chip Type
NXP NTAG® 213
International Standard
ISO/IEC 14443-A, NFC Forum Type 2
User Memory
144 bytes
Read Range
Up to 10 cm
Certificate
WEEE compliant
Specifications
Physical Specifications
Material: PP Synthetic paper
Size: 40×40 mm
Antenna Size: 34×34 mm
Technical Parameters
Operating Frequency: 13.56 MHz
Communication Protocol:
ISO/IEC 14443-A, NFC Forum Type 2
Read Range(on-metal): Up to 10 cm
Capacitance: 50 pF
Operating mode: Passive
Chip Characteristics
Chip Manufacturer: NXP®
Chip Type: NTAG® 213
Data Retention: 10 years
User memory: 144 bytes
UID Memory: 7 bytes
Write Endurance: 100,000 cycles
Reading Rate: 106 kbit/s
High data integrity: 16-bit CRC
Anti-Collision Function: Support
Password: 32-bit
Additional Information
Operating Environment:
Label attach: 10°C ~ 40°C, 20% ~ 80% RH
After label attached: -20°C ~ 50°C, 20% ~ 80% RH
Storage Environment:
18°C ~ 28°C, 40% ~ 60% RH
Handling Precautions:
1. Do not bend.
2. Keep away from water and collision.
3. Labels with black-dot marks are bad ones, do not use.

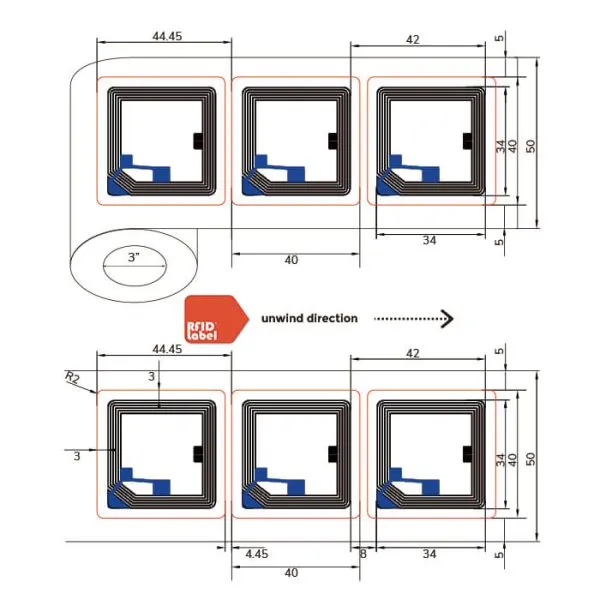

Packaging
Packing Format: Packed in roll, vacuumed packing in ESD bag
Roll OD: Max. 203.2 mm
Core ID: 3 inch (76.20 ± 0.50 mm)
Packing Quantity: 1000 Pcs/roll, per roll 0.555 kg
RFID Card | NTAG® 213
