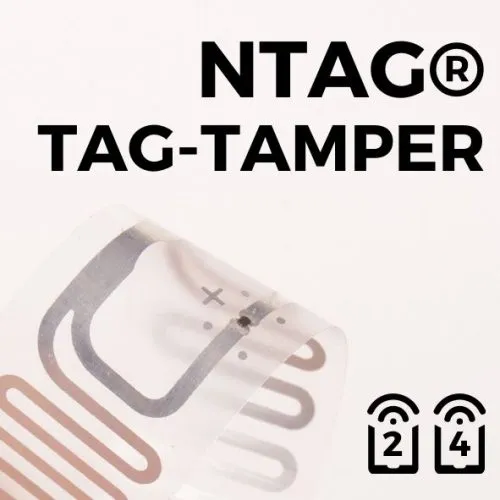

ISO14443A NFC Label/Inlay NXP NTAG® 424 DNA TagTamper
NTAG® 424 DNA TagTamper provide AES-128 cryptographic operation and offers several features to protect brands and enable advanced anti-counterfeiting as well as tamper-proofing. Furthermore, it lets brand owners have a direct engagement with consumers.
Note: Labels are supplied in factory-default condition, with no data pre-encoded. For pre-encoding to enable immediate verification, please contact us for pricing.
There are two ICs from NXP with the name “TagTamper”, which are NTAG® 424 DNA TagTamper and NTAG® 213 TagTamper. Both ICs feature a novel tamper evidence function for identification of unauthorized access with its different design of IC structure. Such solutions based on TagTamper IC works without a dedicated App on the NFC mobile phone.
What is the difference between NTAG® 424 DNA TagTamper and NTAG® 213 TagTamper?
Both ICs are fully compliant to ISO/IEC14443 Type A specifications. But on the NFC part, NTAG® 424 DNA TT is compliant with the NFC Forum Type 4 Tag specification, where the NTAG 213 TT is NFC Forum Type 2 Tag.
In addition, NTAG® 424 DNA TT offers tag authentication with AES-128 cryptography, to use SUN authentication mechanism to working on Android without a dedicated application or from iOS11 onwards sys via an application.
How NTAG® 424 DNA TagTamper works?
Typically, the tags are used to detect the opening of the packaging with AES-128 cryptography. The NFC tag generates a unique NFC authentication message (SUN) by each time it is being tapped with NFC mobile or reader . The unique URL with the SUN authentication message together sends to the host where the authentication take place, and return with the verification.
The antenna structure of NTAG® 424 DNA TT tag can be seen as two parts:
1. The main antenna loop to transmit radio waves between the RFID reader and NTAG® 424 DNA TT IC.
2. The detection loop or detection wire. In case of an open or break of detection wire, the NTAG® 424 DNA TT permanently stores this change. The information status of the Tag Tamper wire can be mirrored in ASCII code into the user memory and subsequently reported to the cloud.
From standalone NFC labels to a complete product authentication system, RFIDlabel™ provides flexible options to meet various requirements.
Physical Specifications
Material: Coated Paper + 3M adhesive Top round section: Ø24 mm Total label height: 49 mm
Technical Parameters
Operating Frequency: 13.56 MHz Communication Protocol: ISO/IEC 14443-A, NFC Forum Type 4 Read Range: Up to 10 cm Internal Tuning Capacitance: 50 pF Operating mode: Passive
Chip Characteristics
Chip Manufacturer:NXP® Chip Type:NTAG® 424 DNA TagTamper Data Retention: 50 years EEPROM Memory: 416 bytes UID Memory: 7 bytes Write Endurance: 100,000 cycles ECC-based NXP Originality Signature: Support AES-based Originality Keys Leveraging The LRP Wrapped AES Authentication: Support Secure Unique NFC (SUN) Message: Support Five Customer Defined AES 128-bit Keys: Support
Additional Information
Operating Environment: -40°C ~ 70°C, 20% ~ 80% RH Storage Environment: 18°C ~ 28°C, 40% ~ 60% RH Handling Precautions: 1. Do not bend. 2. Keep away from water and collision. 3. Labels with black-dot marks are bad ones, do not use.
Packaging
Packing Format: Packed in roll, vacuumed packing in ESD bag Roll OD: Max. 6.1 inch (About 155 mm) Core ID: 3 inch (76.20 ± 0.50 mm) Packing Quantity: 100 Pcs/roll, per roll 0.1 kg
Option 1: Factory-Default NTAG®424 DNA TT Labels The ones being sold on this page
Suitable for companies with existing NFC verification systems or technical capabilities.
We provide NFC Labels in factory-default condition.
You manage NFC encoding and application development independently.
NXP NTAG® TagTamper There are two ICs from NXP with the name “TagTamper”, which are NTAG® 213 TagTamper and NTAG® 424 DNA TagTamper. Both ICs feature a novel tamper evidence function for identification […]
Loooking for More Products? search or use the categories
As a leading RFID hardware manufacturer for over a decade, we are committed to delivering unparalleled quality at competitive prices. Our advanced production facilities and stringent quality control ensure that every product meets the highest standards.
EXPERTISE & INNOVATION
Our expert team drives innovation in RFID technology. Whether you need custom solutions or cutting-edge products, we provide advanced and effective RFID solutions tailored to your needs.
EFFICIENT & RELIABILITY
We offer reliable global shipping with in-stock items delivered within 1-3 business days in North America, Europe, and the Asia Pacific. Our proven track record ensures your satisfaction every time.
$207.00–$4,321.00Price range: $207.00 through $4,321.00Select options This product has multiple variants. The options may be chosen on the product page
ISO14443A NFC Label/Inlay NXP NTAG® 424 DNA TagTamper
NTAG® 424 DNA TagTamper provide AES-128 cryptographic operation and offers several features to protect brands and enable advanced anti-counterfeiting as well as tamper-proofing. Furthermore, it lets brand owners have a direct engagement with consumers.
Note: Labels are supplied in factory-default condition, with no data pre-encoded. For pre-encoding to enable immediate verification, please contact us for pricing.
Contact sales
Description
What is TagTamper?
There are two ICs from NXP with the name “TagTamper”, which are NTAG® 424 DNA TagTamper and NTAG® 213 TagTamper. Both ICs feature a novel tamper evidence function for identification of unauthorized access with its different design of IC structure. Such solutions based on TagTamper IC works without a dedicated App on the NFC mobile phone.
What is the difference between NTAG® 424 DNA TagTamper and NTAG® 213 TagTamper?
Both ICs are fully compliant to ISO/IEC14443 Type A specifications. But on the NFC part, NTAG® 424 DNA TT is compliant with the NFC Forum Type 4 Tag specification, where the NTAG 213 TT is NFC Forum Type 2 Tag.
In addition, NTAG® 424 DNA TT offers tag authentication with AES-128 cryptography, to use SUN authentication mechanism to working on Android without a dedicated application or from iOS11 onwards sys via an application.
How NTAG® 424 DNA TagTamper works?
Typically, the tags are used to detect the opening of the packaging with AES-128 cryptography. The NFC tag generates a unique NFC authentication message (SUN) by each time it is being tapped with NFC mobile or reader . The unique URL with the SUN authentication message together sends to the host where the authentication take place, and return with the verification.
The antenna structure of NTAG® 424 DNA TT tag can be seen as two parts:
1. The main antenna loop to transmit radio waves between the RFID reader and NTAG® 424 DNA TT IC.
2. The detection loop or detection wire. In case of an open or break of detection wire, the NTAG® 424 DNA TT permanently stores this change. The information status of the Tag Tamper wire can be mirrored in ASCII code into the user memory and subsequently reported to the cloud.
Features
Frequency Band
HF 13.56 MHz
Chip Type
NTAG® 424 DNA TagTamper
International Standard
ISO/IEC 14443-A, NFC Forum Type 4
User Memory
416 bytes
Read Range
Up to 10 cm
Certificate
WEEE compliant
Specifications
Choose Your Solution
From standalone NFC labels to a complete product authentication system, RFIDlabel™ provides flexible options to meet various requirements.
Physical Specifications
Material: Coated Paper + 3M adhesive
Top round section: Ø24 mm
Total label height: 49 mm
Technical Parameters
Operating Frequency: 13.56 MHz
Communication Protocol:
ISO/IEC 14443-A, NFC Forum Type 4
Read Range: Up to 10 cm
Internal Tuning Capacitance: 50 pF
Operating mode: Passive
Chip Characteristics
Chip Manufacturer: NXP®
Chip Type: NTAG® 424 DNA TagTamper
Data Retention: 50 years
EEPROM Memory: 416 bytes
UID Memory: 7 bytes
Write Endurance: 100,000 cycles
ECC-based NXP Originality Signature: Support
AES-based Originality Keys Leveraging The LRP Wrapped AES Authentication: Support
Secure Unique NFC (SUN) Message: Support
Five Customer Defined AES 128-bit Keys: Support
Additional Information
Operating Environment:
-40°C ~ 70°C, 20% ~ 80% RH
Storage Environment:
18°C ~ 28°C, 40% ~ 60% RH
Handling Precautions:
1. Do not bend.
2. Keep away from water and collision.
3. Labels with black-dot marks are bad ones, do not use.
Packaging
Packing Format: Packed in roll, vacuumed packing in ESD bag
Roll OD: Max. 6.1 inch (About 155 mm)
Core ID: 3 inch (76.20 ± 0.50 mm)
Packing Quantity: 100 Pcs/roll, per roll 0.1 kg
Option 1: Factory-Default NTAG®424 DNA TT Labels The ones being sold on this page
Suitable for companies with existing NFC verification systems or technical capabilities.
Option 2: Pre-Encoded NFC Labels Pre-encoded for immediate verification
Suitable for brands looking for fast NFC authentication deployment.
Option 3: Complete BrandGuard™ Solution NFC Digital Authentication Solution
Suitable for customers who need a ready-to-use anti-counterfeiting solution without developing or managing their own backend system.
