UHF Tamper Evident RFID Label ISO18000-6C | Higgs® EC 74x24mm
This 74×24 mm UHF Tamper Evident RFID label is meticulously crafted from breakable materials, including both the face material and the antenna. Designed to showcase evidence of interference, the label will “self-destruct” or show clear signs of damage if an attempt is made to remove it.
Chip Manufacturer:Alien® Chip Type:Higgs® EC Data Retention: 50 years EPC Memory: 96 bits User Memory: 128 bits TID memory: 48 bits Access & Kill Password: 32 bits Write Endurance: 200,000 cycles Read sensitivity: -22.5 dBm Write sensitivity: -19 dBm
Additional Information
Operating Limits: -40°C ~ 70°C, 20% ~ 90% RH Storage Limits: 18°C ~ 28°C, 40% ~ 60% RH Handling Precautions: 1. Do not bend. 2. Keep away from water and collision. 3. Inlays with black-dot marks are bad ones, do not use.
Packaging
Packing Format: Packed in roll, vacuumed packing in ESD bag. Roll OD: Max. 185 mm Core ID: 3 inch (76.20 ± 0.50 mm) Packing Quantity: 2500 pcs/roll, 4 rolls/ctn

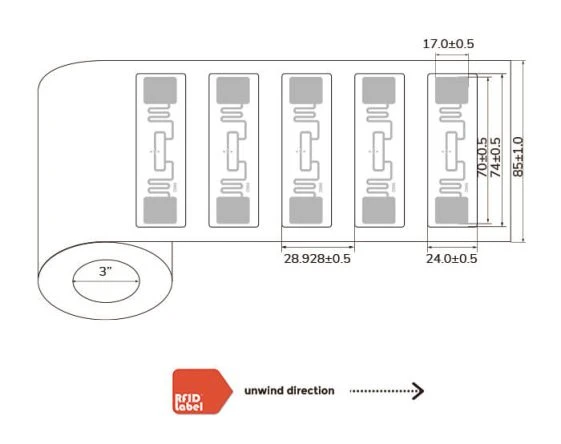

Label Dimensions
Reading range
Above graph shows multiple testing results with the same tag.
Loooking for More Products? search or use the categories
As a leading RFID hardware manufacturer for over a decade, we are committed to delivering unparalleled quality at competitive prices. Our advanced production facilities and stringent quality control ensure that every product meets the highest standards.
EXPERTISE & INNOVATION
Our expert team drives innovation in RFID technology. Whether you need custom solutions or cutting-edge products, we provide advanced and effective RFID solutions tailored to your needs.
EFFICIENT & RELIABILITY
We offer reliable global shipping with in-stock items delivered within 1-3 business days in North America, Europe, and the Asia Pacific. Our proven track record ensures your satisfaction every time.
UHF Tamper Evident RFID Label ISO18000-6C | Higgs® EC 74x24mm
This 74×24 mm UHF Tamper Evident RFID label is meticulously crafted from breakable materials, including both the face material and the antenna. Designed to showcase evidence of interference, the label will “self-destruct” or show clear signs of damage if an attempt is made to remove it.
Contact sales
Description
Features
Frequency Band
UHF 860~960 MHz
Chip Type
Alien Higgs® EC
International Standard
ISO/IEC 18000-6C, EPCglobal Gen2v2
EPC Memory
96 bits
User Memory
128 bits
Certificate
WEEE compliant
Specifications
Physical Specifications
Material: PET
Label Size: 74×24 mm
Antenna Size: 70×17 mm
Technical Parameters
Operating Frequency: 860~960 MHz
Communication Protocol:
ISO/IEC 18000-6C, EPCglobal Gen2v2
Read Range: Up to 13 m
ESD Voltage Immunity: Max. 2000V
Operating mode: Passive
Chip Characteristics
Chip Manufacturer: Alien®
Chip Type: Higgs® EC
Data Retention: 50 years
EPC Memory: 96 bits
User Memory: 128 bits
TID memory: 48 bits
Access & Kill Password: 32 bits
Write Endurance: 200,000 cycles
Read sensitivity: -22.5 dBm
Write sensitivity: -19 dBm
Additional Information
Operating Limits:
-40°C ~ 70°C, 20% ~ 90% RH
Storage Limits:
18°C ~ 28°C, 40% ~ 60% RH
Handling Precautions:
1. Do not bend.
2. Keep away from water and collision.
3. Inlays with black-dot marks are bad ones, do not use.
Packaging
Packing Format: Packed in roll, vacuumed packing in ESD bag.
Roll OD: Max. 185 mm
Core ID: 3 inch (76.20 ± 0.50 mm)
Packing Quantity: 2500 pcs/roll, 4 rolls/ctn
Label Dimensions
Reading range
