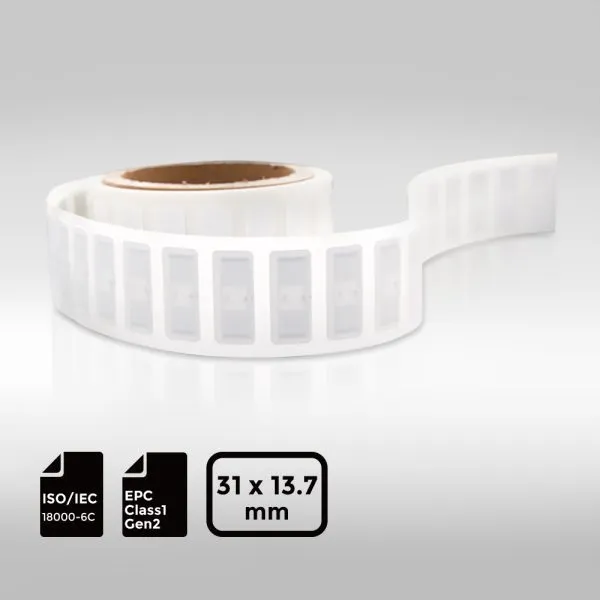

UHF RFID Label 31×13.7mm Alien Higgs® 3 | ISO18000-6C
$22.00–$577.00Price range: $22.00 through $577.00
The Alien Higgs® 3 RFID self-adhesive label is embedded with the advanced Alien Higgs® 3 chip, ensuring high-precision reading. It is compliant with EPC Class 1 Gen 2 and ISO/IEC 18000-6C standards, guaranteeing stable reading capability in various environments. This label provides efficient tracking and management solutions.
Material: PP Synthetic Paper Label Size: 31×13.7 mm Inlay Size: 27×9.7 mm
Technical Parameters
Operating Frequency: 860~960 MHz Communication Protocol: ISO/IEC 18000-6C, EPC Class 1 Gen 2 Antenna etching mode: Aluminum etching (10 µm) + PET (50 µm) Operating Mode: Passive IC EST Voltage Immunity: Max. 2000V (HBM) Read Range: Up to 10 m
Operating Environment: -40°C ~ 70°C, 20% ~ 80% RH Storage Environment: 18°C ~ 28°C, 40% ~ 60% RH Handling Precautions: 1. Keep away from water ,violent bump and squeezing. 2. Inlays with black ink dot are for bad products, do not use.
Packaging
Packing Format: Packed in roll, vacuumed packing in ESD bag Roll OD Size: Max. 195 mm Core ID: 3 inch (76.20 ± 0.50 mm) Packing Quantity: 1000±10 Pcs/roll, 4 rolls/ctn
Loooking for More Products? search or use the categories
As a leading RFID hardware manufacturer for over a decade, we are committed to delivering unparalleled quality at competitive prices. Our advanced production facilities and stringent quality control ensure that every product meets the highest standards.
EXPERTISE & INNOVATION
Our expert team drives innovation in RFID technology. Whether you need custom solutions or cutting-edge products, we provide advanced and effective RFID solutions tailored to your needs.
EFFICIENT & RELIABILITY
We offer reliable global shipping with in-stock items delivered within 1-3 business days in North America, Europe, and the Asia Pacific. Our proven track record ensures your satisfaction every time.
UHF RFID Label 31×13.7mm Alien Higgs® 3 | ISO18000-6C
$22.00 – $577.00Price range: $22.00 through $577.00
The Alien Higgs® 3 RFID self-adhesive label is embedded with the advanced Alien Higgs® 3 chip, ensuring high-precision reading. It is compliant with EPC Class 1 Gen 2 and ISO/IEC 18000-6C standards, guaranteeing stable reading capability in various environments. This label provides efficient tracking and management solutions.
Description
Features
Frequency Band
UHF 860~960 MHz
Chip Type
Alien Higgs® 3
International Standard
ISO/IEC 18000-6C, EPCglobal Gen2
EPC Memory
96-480 bits
User Memory
512 bits
Read Range
Up to 10 m
Specifications

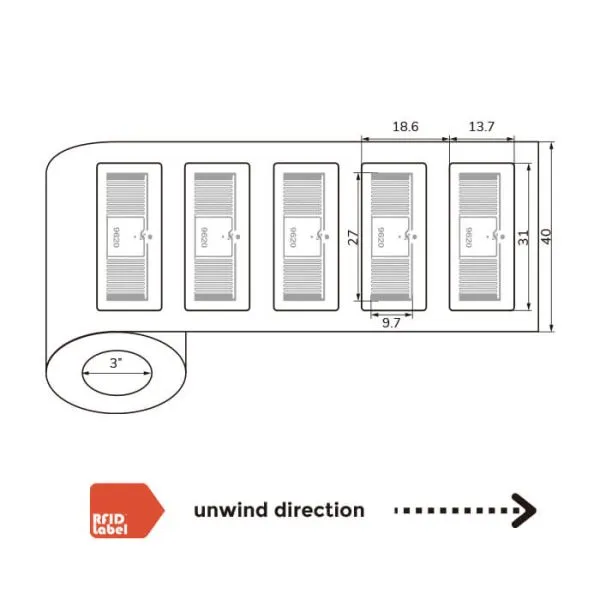

Physical Specifications
Material: PP Synthetic Paper
Label Size: 31×13.7 mm
Inlay Size: 27×9.7 mm
Technical Parameters
Operating Frequency: 860~960 MHz
Communication Protocol:
ISO/IEC 18000-6C, EPC Class 1 Gen 2
Antenna etching mode:
Aluminum etching (10 µm) + PET (50 µm)
Operating Mode: Passive
IC EST Voltage Immunity: Max. 2000V (HBM)
Read Range: Up to 10 m
Chip Characteristics
Chip Manufacturer: Alien®
Chip Type: Higgs® 3
Nonvolatile Memory: 800 bits
Unique TID: 64 bits (read only)
EPC memory: 96-480 bits (read & write)
User memory: 512 bits (read & write)
Reserved Memory:
Access Password: 32 bits (read & write)
Kill Password: 32 bits (read & write)
Read sensitivity: -18 dBm
Write sensitivity: -13.5 dBm
Write Endurance: 100,000 times
Data Retention Time: 50 years
Additional Information
Operating Environment:
-40°C ~ 70°C, 20% ~ 80% RH
Storage Environment:
18°C ~ 28°C, 40% ~ 60% RH
Handling Precautions:
1. Keep away from water ,violent bump and squeezing.
2. Inlays with black ink dot are for bad products, do not use.
Packaging
Packing Format: Packed in roll, vacuumed packing in ESD bag
Roll OD Size: Max. 195 mm
Core ID: 3 inch (76.20 ± 0.50 mm)
Packing Quantity: 1000±10 Pcs/roll, 4 rolls/ctn
