Impinj® M830 UHF RFID Label | 73×20mm
$118.00 – $531.00Price range: $118.00 through $531.00
RFID Label delivers fast, reliable item-level identification for retail and commercial operations. Using the Impinj® M830 chip, it supports robust item identification with optional cryptographic authentication, helping brands verify products, control loss, and maintain cleaner return flows—without sacrificing read speed at scale
Description
Features
Frequency Band
UHF 860-960 MHz
Chip Type
Impinj® M830
International Standard
ISO/IEC 18000-6C, EPC Global Gen2v2
EPC Memory
128 bits
TID Memory
96 bits
User Memory
0 bits
Specifications
Physical Specifications
Material: Coated paper
Label Size: 73×20 mm
Antenna Size: 70×14 mm
Technical Parameters
Operating Frequency: 860-960 MHz
Communication Protocol:
ISO/IEC 18000-6C, EPC Global Gen2v2
Operating mode: Passive
Chip Characteristics
Chip Manufacturer: Impinj®
Chip Type: Impinj® M830
Data Retention: 10 years
User memory: 0 bits
TID memory: 96 bits
EPC memory: 128 bits
Write Endurance: 10,000 times
Read Sensitivity: -25.5 dBm
Write Sensitivity: -20 dBm
Access Password: 32 bits
Kill Password: 32 bits
Impinj FastID™: Support rapid EPC+TID inventory and EPC+TID validation(Gen2 only)
Impinj Self-Serialization: Fenerating unique SGTIN serialization directly from a tag chip’s TID
Impinj Protected Mode™: Reversible kill mode with PIN protection, inhibits fraudulent product returns
Additional Information
Operating Environment:
-20°C ~ 50°C, 20% ~ 80% RH
Storage Environment:
18°C ~ 28°C, 40% ~ 60% RH
Handling Precautions:
1. Do not bend.
2. Keep away from water and collision.
3. Labels with black-dot marks are bad ones, do not use.
Packaging
Packing Format: Packed in roll, vacuumed packing in ESD bag
Roll OD: Max. 216 mm
Core ID: 3 inch/76.20 ± 0.50 mm
Packing Quantity: 1500 Pcs/roll, per roll 1.25 kg

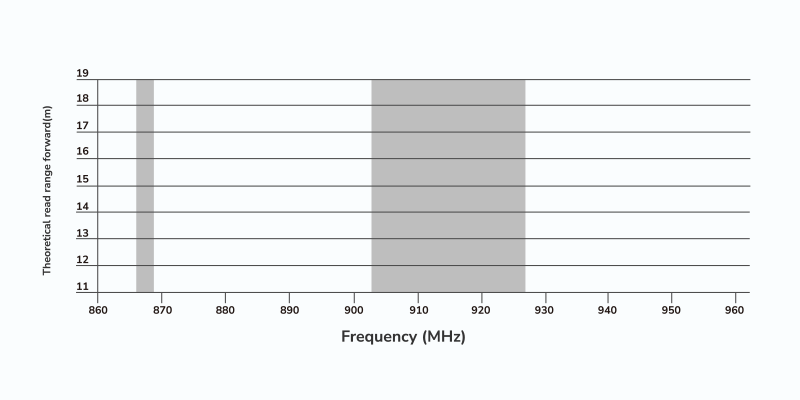

Reading Range Under Different Frequency

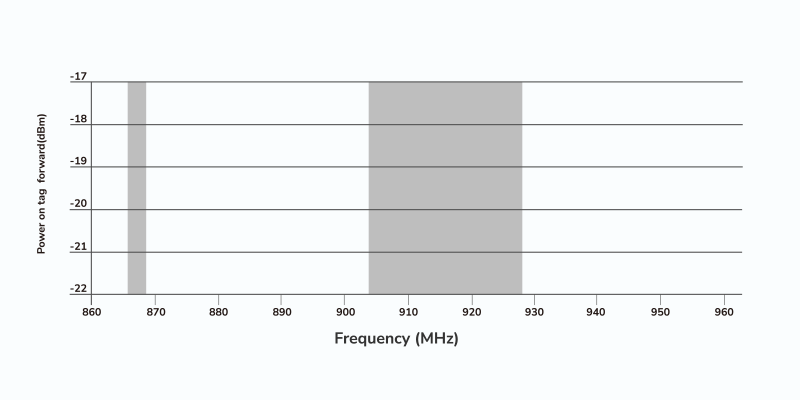

Tag Power Under Different Frequency
