UHF RFID Label 96x22mm Alien Higgs® 9 | ISO18000-6C
$138.00–$554.00Price range: $138.00 through $554.00
The Alien Higgs® 9 RFID self-adhesive label is embedded with the advanced Alien Higgs® 9 chip to ensure high-precision reading, compliant to GS1 Class 1 Gen 2 and ISO/IEC 18000-6C, ensuring stable reading capability of the label in various environments. It comes with self-adhesive label and can be easily installed without additional tools for efficient tracking.

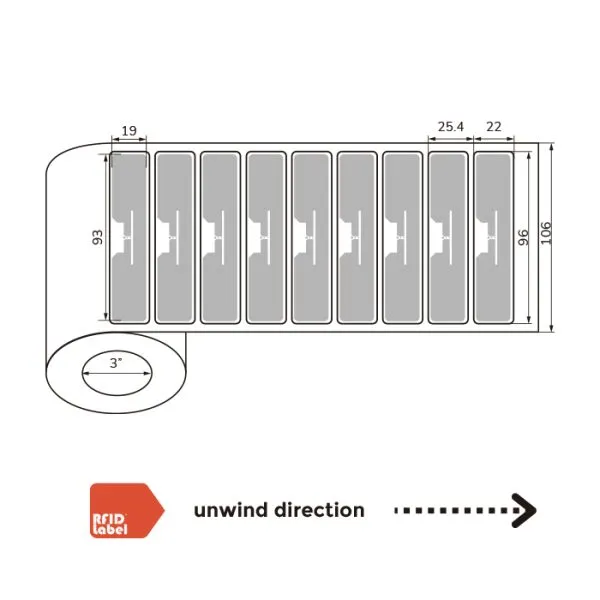

Material: Coated Paper Label Size: 96×22 mm Inlay Size: 93×19 mm
Technical Parameters
Operating Frequency: 860~960 MHz Communication Protocol: ISO/IEC 18000-6C, GS1 Class 1 Gen 2 Antenna etching mode: Aluminum etching (10 µm) + PET (50 µm) Operating Mode: Passive IC EST Voltage Immunity: Max. 2000V (HBM) Read Range: Up to 13 m
Operating Environment: -20°C ~ 70°C, 20% ~ 80% RH Storage Environment: 18°C ~ 28°C, 40% ~ 60% RH Handling Precautions: 1. Do not bend. 2. Keep away from water and collision. 3. Labels with black-dot marks are bad ones, do not use.
Packaging
Packing Format: Packed in roll, vacuumed packing in ESD bag Roll OD Size: Max. 213 mm Core ID: 3 inch (76.20 ± 0.50 mm) Packing Quantity: 5000 ± 2 Pcs/roll, 4 rolls/ctn
Tag Power under different frequency
Above graph shows multiple testing results with the same tag.
Reading range under different frequency
Above graph shows multiple testing results with the same tag.
RFID Label Performance Testing AZL-H9-CP-9622
Loooking for More Products? search or use the categories
As a leading RFID hardware manufacturer for over a decade, we are committed to delivering unparalleled quality at competitive prices. Our advanced production facilities and stringent quality control ensure that every product meets the highest standards.
EXPERTISE & INNOVATION
Our expert team drives innovation in RFID technology. Whether you need custom solutions or cutting-edge products, we provide advanced and effective RFID solutions tailored to your needs.
EFFICIENT & RELIABILITY
We offer reliable global shipping with in-stock items delivered within 1-3 business days in North America, Europe, and the Asia Pacific. Our proven track record ensures your satisfaction every time.
UHF RFID Label 96x22mm Alien Higgs® 9 | ISO18000-6C
$138.00 – $554.00Price range: $138.00 through $554.00
The Alien Higgs® 9 RFID self-adhesive label is embedded with the advanced Alien Higgs® 9 chip to ensure high-precision reading, compliant to GS1 Class 1 Gen 2 and ISO/IEC 18000-6C, ensuring stable reading capability of the label in various environments. It comes with self-adhesive label and can be easily installed without additional tools for efficient tracking.
Description
Features
Frequency Band
UHF 860~960 MHz
Chip Type
Alien Higgs® 9
International Standard
ISO/IEC 18000-6C, GS1 Class 1 Gen 2
EPC Memory
96-496 bits
User Memory
688 bits
Read Range
Up to 13 m
Specifications
Physical Specifications
Material: Coated Paper
Label Size: 96×22 mm
Inlay Size: 93×19 mm
Technical Parameters
Operating Frequency: 860~960 MHz
Communication Protocol:
ISO/IEC 18000-6C, GS1 Class 1 Gen 2
Antenna etching mode:
Aluminum etching (10 µm) + PET (50 µm)
Operating Mode: Passive
IC EST Voltage Immunity: Max. 2000V (HBM)
Read Range: Up to 13 m
Chip Characteristics
Chip Manufacturer: Alien®
Chip Type: Higgs® 9
NVM/RAM Memory: 1024 bits
Unique TID: 48 bits (read only)
EPC Memory: 96-496 bits (read & write)
User memory: 688 bits (read & write)
Reserved Memory:
Access Password: 32 bits (read & write)
Kill Password: 32 bits (read & write)
Read sensitivity: -20 dBm
Write sensitivity: -18 dBm
Write Endurance: 200,000 times
Data Retention Time: 50 years
Additional Information
Operating Environment:
-20°C ~ 70°C, 20% ~ 80% RH
Storage Environment:
18°C ~ 28°C, 40% ~ 60% RH
Handling Precautions:
1. Do not bend.
2. Keep away from water and collision.
3. Labels with black-dot marks are bad ones, do not use.
Packaging
Packing Format: Packed in roll, vacuumed packing in ESD bag
Roll OD Size: Max. 213 mm
Core ID: 3 inch (76.20 ± 0.50 mm)
Packing Quantity: 5000 ± 2 Pcs/roll, 4 rolls/ctn
Tag Power under different frequency
Reading range under different frequency
RFID Label Performance Testing AZL-H9-CP-9622
