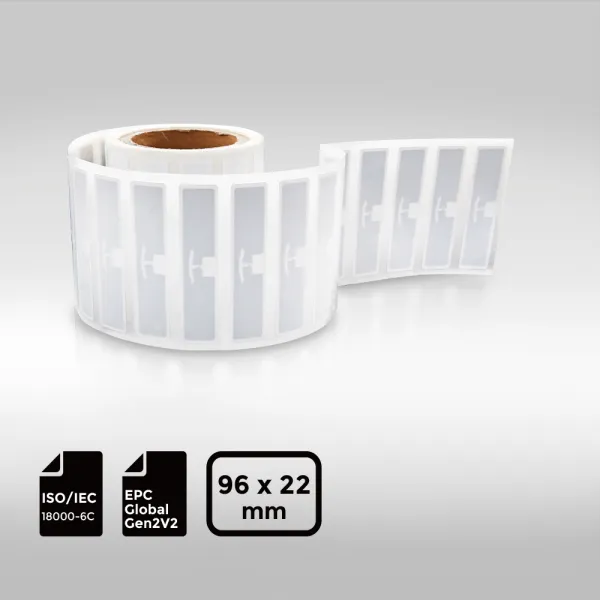

UHF RFID Label Impinj® Monza® R6-P 96x22mm | ISO18000-6C
$18.00–$513.00Price range: $18.00 through $513.00
Experience unparalleled tracking capabilities with our UHF RFID Label, embedded with the advanced Impinj® Monza® R6-P chip. This 96x22mm label adheres to ISO18000-6C standards, offering fast read rates and high data integrity. Benefit from the chip’s AutoTune feature, which provides robust read performance even in rapidly changing environments. Ideal for complex supply chain management and asset tracking.
Material: PP Synthetic Paper Label Size: 96×22 mm Inlay Size: 92×18 mm
Technical Parameters
Operating Frequency: 860~960 MHz Communication Protocol: ISO/IEC 18000-6C, EPCglobal Gen2v2 Antenna Etching Mode: Aluminum etching (10 µm) + PET (50 µm) Operating mode: Passive IC EST Voltage Immunity: Max. 2000V
Chip Characteristics
Chip Manufacturer:Impinj® Chip Type:Monza® R6-P TID memory: 96 bits EPC memory: 128/96 bits User memory: 32/64 bits AutoTune™ Automatic RF Tuning: Standard Integra™ Memory Diagnostics: Standard Enduro™ Robust Bonding Construction: Copper plating Tag Data Protection Features: Access/Kill Short-range mode Read Sensitivity: -22 dBm Write Sensitivity: -17 dBm FastID™ High-speed Reading: Yes TagFocus™ Read Redundancy Prevention: Yes Write Endurance: 100,000 times Data Retention: 50 years
Additional Information
Operating Environment: -40°C ~ 70°C, 20% ~ 90% RH Storage Environment: 18°C ~ 28°C, 40% ~ 60% RH Handling Precautions: 1. Do not bend 2. Keep away from water and collision 3. Inlays with black ink dot are for bad products, do not use.
Packaging
Packing Format: Packed in roll, vacuumed packing in ESD bag Roll OD: Max. 8 inch (About 203 mm) Core ID: 3 inch (76.2 ± 0.50 mm) Packing Quantity:1000 Pcs/roll, per roll 0.96 kg
Loooking for More Products? search or use the categories
As a leading RFID hardware manufacturer for over a decade, we are committed to delivering unparalleled quality at competitive prices. Our advanced production facilities and stringent quality control ensure that every product meets the highest standards.
EXPERTISE & INNOVATION
Our expert team drives innovation in RFID technology. Whether you need custom solutions or cutting-edge products, we provide advanced and effective RFID solutions tailored to your needs.
EFFICIENT & RELIABILITY
We offer reliable global shipping with in-stock items delivered within 1-3 business days in North America, Europe, and the Asia Pacific. Our proven track record ensures your satisfaction every time.
UHF RFID Label Impinj® Monza® R6-P 96x22mm | ISO18000-6C
$18.00 – $513.00Price range: $18.00 through $513.00
Experience unparalleled tracking capabilities with our UHF RFID Label, embedded with the advanced Impinj® Monza® R6-P chip. This 96x22mm label adheres to ISO18000-6C standards, offering fast read rates and high data integrity. Benefit from the chip’s AutoTune feature, which provides robust read performance even in rapidly changing environments. Ideal for complex supply chain management and asset tracking.
Description
Features
Frequency Band
UHF 860~960 MHz
Chip Type
Impinj® Monza® R6-P
International Standard
ISO/IEC 18000-6C, EPCglobal Gen2v2
EPC Memory
128/96 bits
User Memory
32/64 bits
Certificate
WEEE compliant
Specifications

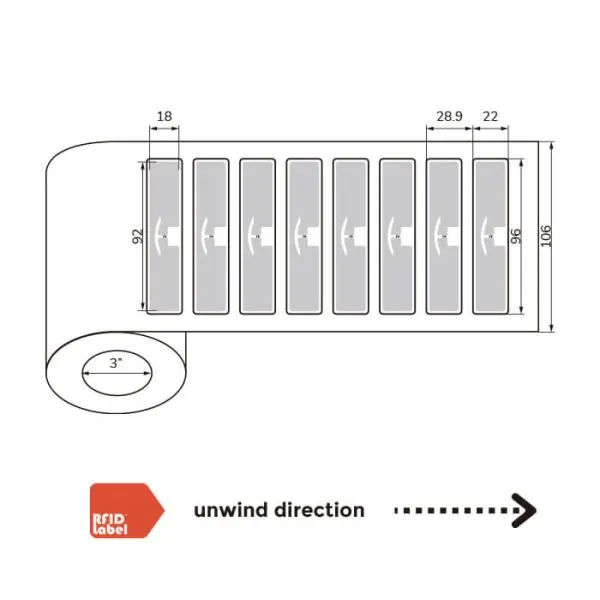

Physical Specifications
Material: PP Synthetic Paper
Label Size: 96×22 mm
Inlay Size: 92×18 mm
Technical Parameters
Operating Frequency: 860~960 MHz
Communication Protocol:
ISO/IEC 18000-6C, EPCglobal Gen2v2
Antenna Etching Mode:
Aluminum etching (10 µm) + PET (50 µm)
Operating mode: Passive
IC EST Voltage Immunity: Max. 2000V
Chip Characteristics
Chip Manufacturer: Impinj®
Chip Type: Monza® R6-P
TID memory: 96 bits
EPC memory: 128/96 bits
User memory: 32/64 bits
AutoTune™ Automatic RF Tuning: Standard
Integra™ Memory Diagnostics: Standard
Enduro™ Robust Bonding Construction: Copper plating
Tag Data Protection Features: Access/Kill Short-range mode
Read Sensitivity: -22 dBm
Write Sensitivity: -17 dBm
FastID™ High-speed Reading: Yes
TagFocus™ Read Redundancy Prevention: Yes
Write Endurance: 100,000 times
Data Retention: 50 years
Additional Information
Operating Environment:
-40°C ~ 70°C, 20% ~ 90% RH
Storage Environment:
18°C ~ 28°C, 40% ~ 60% RH
Handling Precautions:
1. Do not bend
2. Keep away from water and collision
3. Inlays with black ink dot are for bad products, do not use.
Packaging
Packing Format: Packed in roll, vacuumed packing in ESD bag
Roll OD: Max. 8 inch (About 203 mm)
Core ID: 3 inch (76.2 ± 0.50 mm)
Packing Quantity:1000 Pcs/roll, per roll 0.96 kg
