UHF RFID Wet Inlay Impinj® Monza® 4E 74x24mm | ISO18000-6C
$22.00 – $577.00Price range: $22.00 through $577.00
Unlock unbeatable tracking capabilities with our 74x24mm UHF RFID Wet Inlay, equipped with the market-leading Impinj® Monza® 4E chip. Designed for superior performance and ISO18000-6C compliance, this RFID wet inlay excels in delivering a long reading range and robust data security. Its large size enhances antenna performance, making it an ideal choice for applications that require high reliability and wide coverage, such as logistics, warehouse management, and asset tracking. Make the smart choice for maximum efficiency with our 74x24mm UHF RFID Wet Inlay.
Description
Features
Frequency Band
UHF 860~960 MHz
Chip Type
Impinj® Monza® 4E
International Standard
ISO/IEC 18000-6C, EPCglobal Gen2v2
EPC Memory
96 bits (Default ) / 496 bits (Max.)
User Memory
128 bits
Certificate
WEEE compliant
Specifications

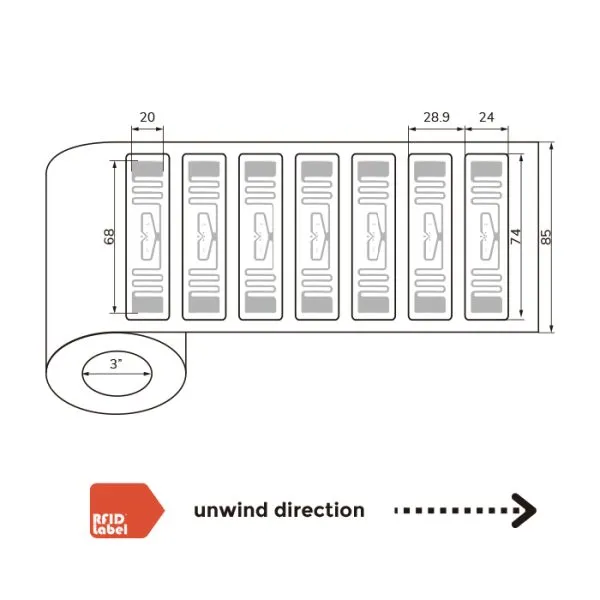

Physical Specifications
Material: PET
Label Size: 74×24 mm
Inlay Size: 68×20 mm
Technical Parameters
Operating Frequency: 860~960 MHz
Communication Protocol:
ISO/IEC 18000-6C, EPCglobal Gen2v2
Antenna Etching Mode: Aluminum etching (9 µm)
Operating mode: Passive
IC EST Voltage Immunity: Max. 2000V (HBM)
Chip Characteristics
Chip Manufacturer: Impinj®
Chip Type: Monza® 4E
TID: 96 bits (read only)
EPC memory:
Default: 96 bits
Max.: 496 bits
User memory: 128 bits (read & write)
Reserved Memory:
Access Password: 32 bits (read & write)
Kill Password: 32 bits (read & write)
Read sensitivity: -19.5 dBm
Write sensitivity: -16.7 dBm
Write Endurance: 100,000 times
Data Retention Time: 50 years
Additional Information
Operating Environment:
-40°C ~ 70°C, 20% ~ 90% RH
Storage Environment:
18°C ~ 28°C, 40% ~ 60% RH
Handling Precautions:
1. Do not bend.
2. Keep away from water and collision.
3. Inlays with black ink dot are for bad products, do not use.
Packaging
Packing Format: Packed in roll, vacuumed packing in ESD bag
Roll OD: Max. 185 mm
Core ID: 3 inch (76.2 ± 0.50 mm)
Packing Quantity:
500 Pcs/roll, per roll 0.318 kg
