NXP UCODE® 8 PET RFID UHF On-Liquid Label | 73×20mm
$115.00
The NXP UCODE® 8 PET RFID On-Liquid Label is specifically designed to perform better on glass bottles and is specially engineered for high-performance RFID tagging on liquid-filled containers or moist environments. Powered by the advanced UCODE® 8 chip, it offers exceptional read sensitivity, faster inventory counts, and enhanced data reliability, making it ideal for challenging applications involving liquids.
Constructed with durable PET material, this label provides strong adhesion and resistance to water, chemicals, and abrasion. It performs reliably on curved or irregular surfaces and is perfectly suited for tracking bottled products, cosmetics, chemicals, and pharmaceuticals — improving inventory visibility and operational efficiency.
Chip Manufacturer:NXP® Chip Type:UCODE® 8 Data Retention: 20 years EPC Memory: 128 bits TID Memory: 96 bits Read Sensitivity: -23 dBm Write Sensitivity: -18 dBm Access Password: 32 bits Memory Safeguard: Memroy Safeguard Write Endurance: 100,000 times
Additional Information
Operating Environment: -20°C ~ 50°C, 20% ~ 80% RH Storage Environment: 18°C ~ 28°C, 40% ~ 60% RH Handling Precautions: 1. Do not bend. 2. Keep away from water and collision. 3. Labels with black-dot marks are bad ones, do not use.
Packaging
Packing Format: Packed in roll, vacuumed packing in ESD bag Roll OD: Max. 181 mm Core ID: 3 inch (76.20 ± 0.50 mm) Packing Quantity: 2500 Pcs/roll, per roll 1.17 kg
Loooking for More Products? search or use the categories
As a leading RFID hardware manufacturer for over a decade, we are committed to delivering unparalleled quality at competitive prices. Our advanced production facilities and stringent quality control ensure that every product meets the highest standards.
EXPERTISE & INNOVATION
Our expert team drives innovation in RFID technology. Whether you need custom solutions or cutting-edge products, we provide advanced and effective RFID solutions tailored to your needs.
EFFICIENT & RELIABILITY
We offer reliable global shipping with in-stock items delivered within 1-3 business days in North America, Europe, and the Asia Pacific. Our proven track record ensures your satisfaction every time.
NXP UCODE® 8 PET RFID UHF On-Liquid Label | 73×20mm
$115.00
The NXP UCODE® 8 PET RFID On-Liquid Label is specifically designed to perform better on glass bottles and is specially engineered for high-performance RFID tagging on liquid-filled containers or moist environments. Powered by the advanced UCODE® 8 chip, it offers exceptional read sensitivity, faster inventory counts, and enhanced data reliability, making it ideal for challenging applications involving liquids.
Constructed with durable PET material, this label provides strong adhesion and resistance to water, chemicals, and abrasion. It performs reliably on curved or irregular surfaces and is perfectly suited for tracking bottled products, cosmetics, chemicals, and pharmaceuticals — improving inventory visibility and operational efficiency.
Description
Features
Frequency Band
UHF 860~960 MHz
Chip Type
NXP UCODE® 8
International Standard
ISO/IEC 18000-6C, EPCglobal Gen2v2
EPC Memory
128 bits
TID Memory
96 bits
Certificate
WEEE compliant
Specifications
Physical Specifications
Material: PET

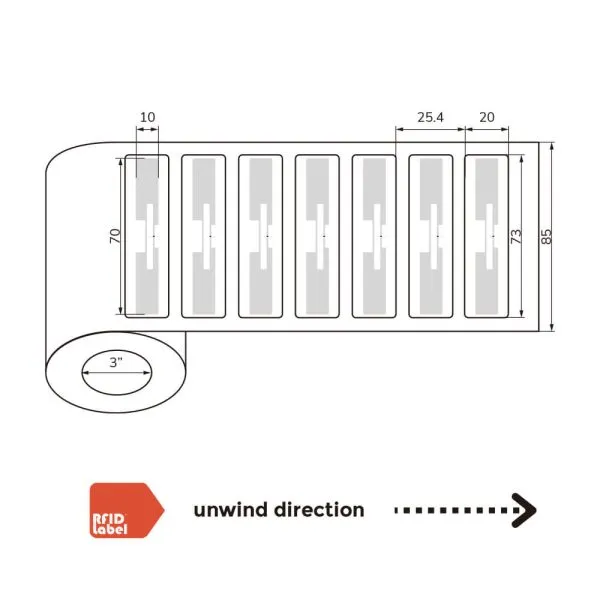

Label Size: 73×20 mm
Antenna Size: 70×10 mm
Technical Parameters
Operating Frequency: 860~960 MHz
Communication Protocol:
ISO/IEC 18000-6C, EPCglobal Gen2v2
Operating mode: Passive
ESD Voltage Immunity: Max. 2000V
Chip Characteristics
Chip Manufacturer: NXP®
Chip Type: UCODE® 8
Data Retention: 20 years
EPC Memory: 128 bits
TID Memory: 96 bits
Read Sensitivity: -23 dBm
Write Sensitivity: -18 dBm
Access Password: 32 bits
Memory Safeguard: Memroy Safeguard
Write Endurance: 100,000 times
Additional Information
Operating Environment:
-20°C ~ 50°C, 20% ~ 80% RH
Storage Environment:
18°C ~ 28°C, 40% ~ 60% RH
Handling Precautions:
1. Do not bend.
2. Keep away from water and collision.
3. Labels with black-dot marks are bad ones, do not use.
Packaging
Packing Format: Packed in roll, vacuumed packing in ESD bag
Roll OD: Max. 181 mm
Core ID: 3 inch (76.20 ± 0.50 mm)
Packing Quantity: 2500 Pcs/roll, per roll 1.17 kg
