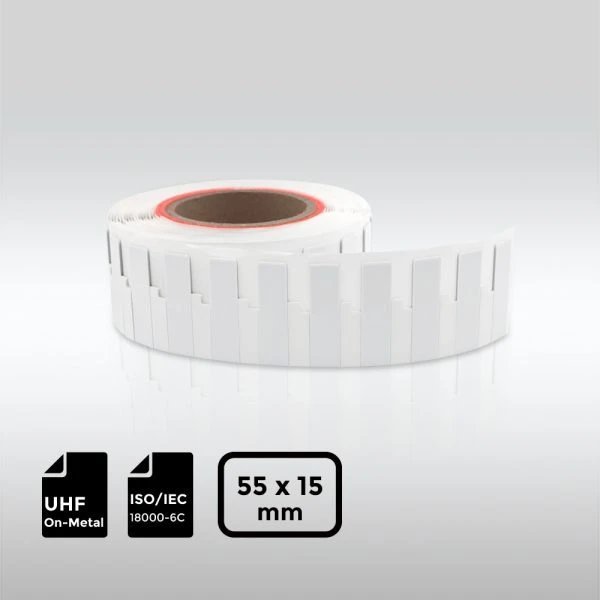

UHF On-Metal RFID Label Impinj® Monza® R6-P 55x15mm | ISO18000-6C
$98.00–$703.00Price range: $98.00 through $703.00
The Flexible & Printable UHF On-Metal Label is a durable, customizable, high-performance RFID label that can be easily printed and encoded. The label is ideal for metallic container tracking, equipment & device tracking, warehouse shelf tracking, automotive components tracking, IT asset tracking, etc. It can be stuck to metallic assets easily, especially on irregular and uneven surfaces.
Material: PET & Aluminum Foil & Foam Label Size: 55×15×1.25 mm(L×W×T) IP Rating: IP68, test for 5 hours at 1 meter deep water Personalized Printing: Logo, barcode/QR code, number printing, encoding, etc.
Additional Info
Support Printer: SATO CL4NX, Zebra ZT411 Silverline, Postek TX3r, etc. Application: Metallic container tracking, Equipment and device tracking, Warehouse shelf, Automotive components tracking, IT asset tracking, etc.
RF Specifications
Chip Manufacturer:Impinj® Chip Type:Monza® R6-P Support protocols: ISO 18000-6C, EPCglobal Gen2v2 Frequency:860~960 MHz EPC Memory: 128 | 96 bits Die Size: 464.1×442 µm User Memory: 32 | 64 bits Read Sensitivity: -22 dBm Write Sensitivity: -17 dBm Read Distance (2W ERP FCC): 5.5 m on-metal, 2.8 m off-metal Read Distance (2W ERP ETSI): 3.5 m on-metal, 2 m off-metal Tag data protection features: Access / Kill short-range mode Data Retention: > 10 years Write Endurance: 100,000 times
Environmental Spec
Operating Environment: -40°C ~ 85°C Storage Environment: 18°C ~ 28°C, 40%~60%RH Handling Precautions: 1. Do not bend. 2. Keep away from water and collision. 3. Labels with black-dot marks are bad ones, do not use.
Packaging
Packing quantity: 500 pcs/roll Packing method: Packed in roll Reel core inner diameter: 76.2 mm/3¨ Installation: Directly stick on objects
Above graph shows multiple testing results with the same tag.
Reading performance ETSI standard
Above graph shows multiple testing results with the same tag.
UHF On-Metal RFID Labels On Different Metal Surfaces: Test Results Comparison
Surface Type
Max Reading Distance (m)
Read Success Rate
Non-Metal
1.0
100%
Steel
4.2
100%
Aluminum
1.6
100%
Iron
6.2
100%
All test data were obtained using a UHF RFID handheld reader (SKU:AZH-P1) for reference only. Actual performance may vary depending on the customer’s on-site testing results.
Performance Testing Of UHF On-Metal RFID Lables On Different Metal Surfaces
Effective Asset Tracking For Metal Surfaces And Multiple Environments
Loooking for More Products? search or use the categories
As a leading RFID hardware manufacturer for over a decade, we are committed to delivering unparalleled quality at competitive prices. Our advanced production facilities and stringent quality control ensure that every product meets the highest standards.
EXPERTISE & INNOVATION
Our expert team drives innovation in RFID technology. Whether you need custom solutions or cutting-edge products, we provide advanced and effective RFID solutions tailored to your needs.
EFFICIENT & RELIABILITY
We offer reliable global shipping with in-stock items delivered within 1-3 business days in North America, Europe, and the Asia Pacific. Our proven track record ensures your satisfaction every time.
UHF On-Metal RFID Label Impinj® Monza® R6-P 55x15mm | ISO18000-6C
$98.00 – $703.00Price range: $98.00 through $703.00
The Flexible & Printable UHF On-Metal Label is a durable, customizable, high-performance RFID label that can be easily printed and encoded. The label is ideal for metallic container tracking, equipment & device tracking, warehouse shelf tracking, automotive components tracking, IT asset tracking, etc. It can be stuck to metallic assets easily, especially on irregular and uneven surfaces.
Description
Features
Frequency Band
UHF 860~960MHz
Chip Type
Impinj® Monza® R6-P
International Standard
ISO/IEC 18000-6C, EPCglobal Gen2v2
EPC Memory
128 | 96 bits
User Memory
32 | 64 bits
Certificate
WEEE compliant
Specifications
Physical Specifications
Material: PET & Aluminum Foil & Foam
Label Size: 55×15×1.25 mm(L×W×T)
IP Rating: IP68, test for 5 hours at 1 meter deep water
Personalized Printing: Logo, barcode/QR code, number printing, encoding, etc.
Additional Info
Support Printer:
SATO CL4NX, Zebra ZT411 Silverline, Postek TX3r, etc.
Application:
Metallic container tracking, Equipment and device tracking, Warehouse shelf, Automotive components tracking, IT asset tracking, etc.
RF Specifications
Chip Manufacturer: Impinj®
Chip Type: Monza® R6-P
Support protocols: ISO 18000-6C, EPCglobal Gen2v2
Frequency: 860~960 MHz
EPC Memory: 128 | 96 bits
Die Size: 464.1×442 µm
User Memory: 32 | 64 bits
Read Sensitivity: -22 dBm
Write Sensitivity: -17 dBm
Read Distance (2W ERP FCC): 5.5 m on-metal, 2.8 m off-metal
Read Distance (2W ERP ETSI): 3.5 m on-metal, 2 m off-metal
Tag data protection features: Access / Kill short-range mode
Data Retention: > 10 years
Write Endurance: 100,000 times
Environmental Spec
Operating Environment: -40°C ~ 85°C
Storage Environment: 18°C ~ 28°C, 40%~60%RH
Handling Precautions:
1. Do not bend.
2. Keep away from water and collision.
3. Labels with black-dot marks are bad ones, do not use.
Packaging
Packing quantity: 500 pcs/roll
Packing method: Packed in roll
Reel core inner diameter: 76.2 mm/3¨
Installation: Directly stick on objects
Download & Support AZ-R6P-OMPET-5515
Reading performance FCC standard
Reading performance ETSI standard
UHF On-Metal RFID Labels On Different Metal Surfaces: Test Results Comparison
All test data were obtained using a UHF RFID handheld reader (SKU:AZH-P1) for reference only. Actual performance may vary depending on the customer’s on-site testing results.
Performance Testing Of UHF On-Metal RFID Lables On Different Metal Surfaces
Effective Asset Tracking For Metal Surfaces And Multiple Environments
