The UHF On-Liquid & On-Metal RFID Label with NXP® UCODE® 8 chip (64×6mm) is specifically engineered for reliable performance on challenging surfaces such as metal and liquid containers. Featuring the advanced UCODE® 8 chip, this label provides exceptional reading sensitivity, fast data encoding, and expanded EPC memory, ensuring precise and efficient asset identification in complex environments.Its anti-interference and durable construction make it ideal for applications in industrial asset tracking, liquid product logistics, tool management, and supply chain visibility. Even when applied to metallic or curved surfaces, the label maintains consistent read performance, offering a stable, high-efficiency RFID solution that empowers smarter, real-time data management across industries.
Material: PET & Aluminum Foil & Foam Label Size: 64×6×1 mm(L×W×T) IP Rating: IP68, test for 5 hours at 1 meter deep water Personalized Printing: Logo, barcode/QR code, number printing, encoding, etc.
Additional Info
Support Printer: SATO CL4NX, Zebra ZT411 Silverline, Postek TX3r, etc. Application: Metallic container tracking, equipment and device tracking, Warehouse shelf, Hand tools, Weapon, IT asset tracking, Cosmetic, Wine etc.
RF Specifications
Chip Manufacturer:NXP® Chip Type:UCODE® 8 Support protocols: ISO/IEC 18000-6C, EPCglobal Gen2v2 Frequency:860~960 MHz Read/Write EPC: 128 bits Read/Write User Memory: 32 bits Read Sensitivity: -23 dBm Write Sensitivity:-18 dBm Read Distance (2W ERP FCC): 4 m on-metal, 4.5 m on-liquid Read Distance (2W ERP ETSI): 3.5 m on-metal, 6.5 m on-liquid Access password : 32 bits Data Retention: > 10 years Write Endurance: 100,000 times
Environmental Spec
Operating Environment: -40°C ~ 85°C Storage Environment: 18°C ~ 28°C, 40% ~ 60% RH Read Distance (2W ERP FCC): 1. Do not bend. 2. Keep away from water and collision. 3. Labels with black-dot marks are bad ones, do not use.
Packaging

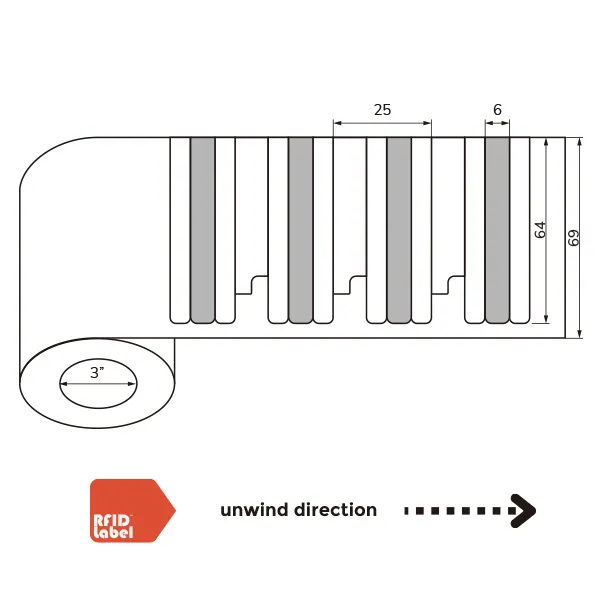

Packing quantity: 500 pcs/roll Packing method: Packed in roll Reel core inner diameter: 76.20mm/3¨ Installation: Directly stick on objects
Above graph shows multiple testing results with the same tag.
Tag Power under different frequency
Above graph shows multiple testing results with the same tag.
UHF On-Metal RFID Labels On Different Metal Surfaces: Test Results Comparison
Surface Type
Max Reading Distance (m)
Read Success Rate
Non-Metal
1.0
100%
Steel
4.2
100%
Aluminum
1.6
100%
Iron
6.2
100%
All test data were obtained using a UHF RFID handheld reader (SKU: AZH-P1) for reference only. Actual performance may vary depending on the customer’s on-site testing results.
Performance Testing Of UHF On-Metal RFID Lables On Different Metal Surfaces
Effective Asset Tracking For Metal Surfaces And Multiple Environments
Loooking for More Products? search or use the categories
As a leading RFID hardware manufacturer for over a decade, we are committed to delivering unparalleled quality at competitive prices. Our advanced production facilities and stringent quality control ensure that every product meets the highest standards.
EXPERTISE & INNOVATION
Our expert team drives innovation in RFID technology. Whether you need custom solutions or cutting-edge products, we provide advanced and effective RFID solutions tailored to your needs.
EFFICIENT & RELIABILITY
We offer reliable global shipping with in-stock items delivered within 1-3 business days in North America, Europe, and the Asia Pacific. Our proven track record ensures your satisfaction every time.
UHF On-Liquid & On-Metal RFID Label NXP UCODE® 8 64x6mm | ISO18000-6C
$98.00 – $703.00Price range: $98.00 through $703.00
Description
Features
Frequency Band
UHF 860~960 MHz
Chip Type
NXP UCODE® 8
International Standard
ISO/IEC 18000-6C, EPCglobal Gen2v2
EPC Memory
128 bits
IP Rating
IP68, test for 5 hours at 1m deep water
Certificate
WEEE compliant
Specifications
Physical Specifications
Material: PET & Aluminum Foil & Foam
Label Size: 64×6×1 mm(L×W×T)
IP Rating: IP68, test for 5 hours at 1 meter deep water
Personalized Printing: Logo, barcode/QR code, number printing, encoding, etc.
Additional Info
Support Printer:
SATO CL4NX, Zebra ZT411 Silverline, Postek TX3r, etc.
Application:
Metallic container tracking, equipment and device tracking, Warehouse shelf, Hand tools, Weapon, IT asset tracking, Cosmetic, Wine etc.
RF Specifications
Chip Manufacturer: NXP®
Chip Type: UCODE® 8
Support protocols: ISO/IEC 18000-6C, EPCglobal Gen2v2
Frequency: 860~960 MHz
Read/Write EPC: 128 bits
Read/Write User Memory: 32 bits
Read Sensitivity: -23 dBm
Write Sensitivity:-18 dBm
Read Distance (2W ERP FCC): 4 m on-metal, 4.5 m on-liquid
Read Distance (2W ERP ETSI): 3.5 m on-metal, 6.5 m on-liquid
Access password : 32 bits
Data Retention: > 10 years
Write Endurance: 100,000 times
Environmental Spec
Operating Environment: -40°C ~ 85°C
Storage Environment: 18°C ~ 28°C, 40% ~ 60% RH
Read Distance (2W ERP FCC):
1. Do not bend.
2. Keep away from water and collision.
3. Labels with black-dot marks are bad ones, do not use.
Packaging
Packing quantity: 500 pcs/roll
Packing method: Packed in roll
Reel core inner diameter: 76.20mm/3¨
Installation: Directly stick on objects
Download & Support AZ-U8-OMPET-6406
Reading Range under different frequency
Tag Power under different frequency
UHF On-Metal RFID Labels On Different Metal Surfaces: Test Results Comparison
All test data were obtained using a UHF RFID handheld reader (SKU: AZH-P1) for reference only. Actual performance may vary depending on the customer’s on-site testing results.
Performance Testing Of UHF On-Metal RFID Lables On Different Metal Surfaces
Effective Asset Tracking For Metal Surfaces And Multiple Environments
