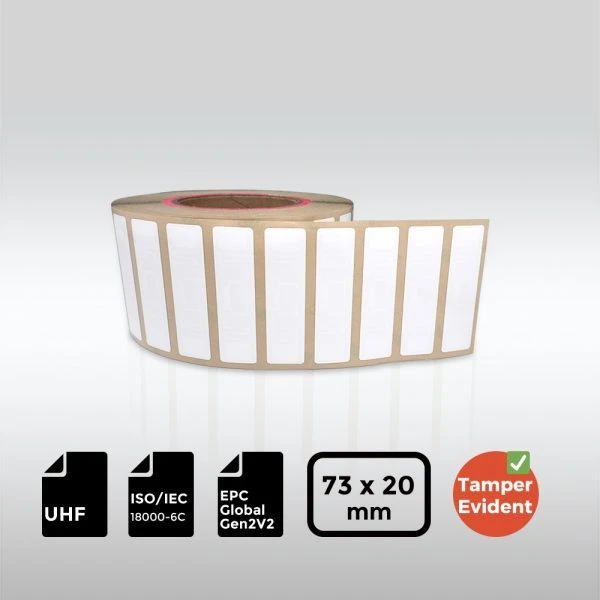

Tamper-Evident NXP® UCODE® 8 UHF RFID Label | 73×20mm
$169.00–$2,178.00Price range: $169.00 through $2,178.00
The 73×20mm Tamper-Evident RFID Label, powered by the NXP® UCODE® 8 chip, delivers reliable long-range identification and fast bulk reading for efficient tracking. Its tamper-evident design ensures the label cannot be removed or reused without visible damage, helping prevent theft and counterfeiting. Ideal for retail, logistics, and asset management, this label combines strong performance with enhanced security in a compact, easy-to-apply format.
Chip Manufacturer:NXP® Chip Type:UCODE® 8 Data Retention: 20 years User memory: 0 bits TID memory: 96 bits EPC memory: 128 bits Write Endurance: 100,000 times Read Sensitivity: -23 dBm Write Sensitivity: -18 dBm Access Password: 32 bits Kill Password: 32 bits Memory Safeguard: Yes
Additional Information
Operating Environment: -20°C ~ 50°C, 20% ~ 80% RH Storage Environment: 18°C ~ 28°C, 40% ~ 60% RH Handling Precautions: 1. Do not bend. 2. Keep away from water and collision. 3. Labels with black-dot marks are bad ones, do not use.
Packaging
Packing Format: Packed in roll, vacuumed packing in ESD bag Roll OD: Max. 190 mm Core ID: 3 inch/76.20 ± 0.50 mm Packing Quantity: 2500 Pcs/roll, per roll 1.5 kg
Loooking for More Products? search or use the categories
As a leading RFID hardware manufacturer for over a decade, we are committed to delivering unparalleled quality at competitive prices. Our advanced production facilities and stringent quality control ensure that every product meets the highest standards.
EXPERTISE & INNOVATION
Our expert team drives innovation in RFID technology. Whether you need custom solutions or cutting-edge products, we provide advanced and effective RFID solutions tailored to your needs.
EFFICIENT & RELIABILITY
We offer reliable global shipping with in-stock items delivered within 1-3 business days in North America, Europe, and the Asia Pacific. Our proven track record ensures your satisfaction every time.
Tamper-Evident NXP® UCODE® 8 UHF RFID Label | 73×20mm
$169.00 – $2,178.00Price range: $169.00 through $2,178.00
The 73×20mm Tamper-Evident RFID Label, powered by the NXP® UCODE® 8 chip, delivers reliable long-range identification and fast bulk reading for efficient tracking. Its tamper-evident design ensures the label cannot be removed or reused without visible damage, helping prevent theft and counterfeiting. Ideal for retail, logistics, and asset management, this label combines strong performance with enhanced security in a compact, easy-to-apply format.
Description
Features
Frequency Band
UHF 860-960 MHz
Chip Type
NXP® UCODE® 8
International Standard
ISO/IEC 18000-6C, EPC Global Gen2v2
EPC Memory
128 bits
TID Memory
96 bits
User Memory
0 bits
Specifications
Physical Specifications
Material: PET & 3M adhesive

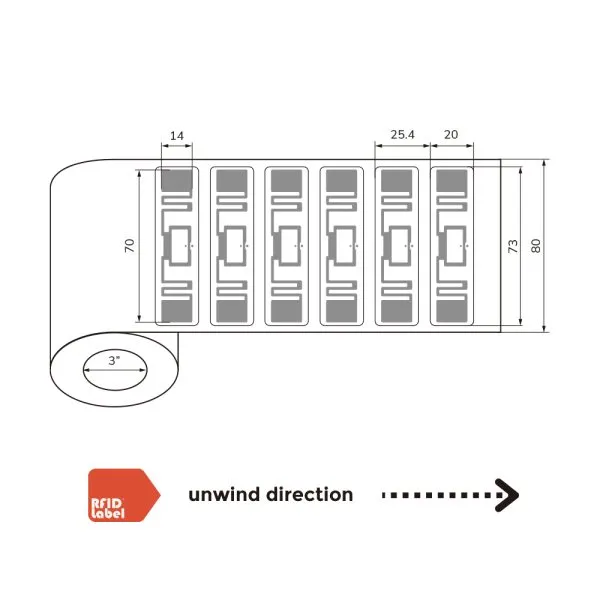

Label Size: 73×20×0.3 mm
Antenna Size: 70×14 mm
Technical Parameters
Operating Frequency: 860-960 MHz
Communication Protocol:
ISO/IEC 18000-6C, EPC Global Gen2v2
Operating mode: Passive
Chip Characteristics
Chip Manufacturer: NXP®
Chip Type: UCODE® 8
Data Retention: 20 years
User memory: 0 bits
TID memory: 96 bits
EPC memory: 128 bits
Write Endurance: 100,000 times
Read Sensitivity: -23 dBm
Write Sensitivity: -18 dBm
Access Password: 32 bits
Kill Password: 32 bits
Memory Safeguard: Yes
Additional Information
Operating Environment:
-20°C ~ 50°C, 20% ~ 80% RH
Storage Environment:
18°C ~ 28°C, 40% ~ 60% RH
Handling Precautions:
1. Do not bend.
2. Keep away from water and collision.
3. Labels with black-dot marks are bad ones, do not use.
Packaging
Packing Format: Packed in roll, vacuumed packing in ESD bag
Roll OD: Max. 190 mm
Core ID: 3 inch/76.20 ± 0.50 mm
Packing Quantity: 2500 Pcs/roll, per roll 1.5 kg
