$169.00–$615.00Price range: $169.00 through $615.00
Specifically designed to perform better on glass bottles, UHF UCODE® 8 RFID on-liquid PET labels are a cutting-edge solution designed to provide reliable and accurate tracking in challenging environments where the presence of liquids may interfere with RFID performance. The label uses a durable and flexible PET material that ensures optimal reading range and stability even if applied directly to containers filled with liquid.
Material: PET Label Size: 43×18 mm Inlay Size: 40×15 mm
Technical Parameters
Operating Frequency: 860~960 MHz Communication Protocol: ISO/IEC 18000-6C, EPCglobal Gen2v2 Antenna etching mode: Aluminum etching (9 µm) Operating Mode: Passive IC EST Voltage Immunity: Max. 2000V (HBM)
Chip Characteristics
Chip Manufacturer:NXP® Chip Type:UCODE® 8 TID Memory: 96 bits (read only) EPC Memory: 128 bits (read & write) Read Sensitivity: -23 dBm Write Sensitivity: -18 dBm Encoding speed: 16-bit per millisecond Self Adjust: Automated tag performance optimization Brand Identifier: Enables product authentication verification Write Endurance: 100,000 times Data Retention Time: 20 years Memory Safeguard: Support
Additional Information
Operating Environment: -20°C ~ 50°C, 20% ~ 80% RH Label Attach Environment: 10°C ~ 40°C, 20% ~ 80% RH Handling Precautions: 1. Do not bend. 2. Keep away from water and collision. 3. Labels with black-dot marks are bad ones, do not use.
Packaging
Packing Format: Packed in roll (ID = 76.2 mm, OD ≤ 171 mm) Packing Quantity: 2500 ± 2 Pcs/roll
As a leading RFID hardware manufacturer for over a decade, we are committed to delivering unparalleled quality at competitive prices. Our advanced production facilities and stringent quality control ensure that every product meets the highest standards.
EXPERTISE & INNOVATION
Our expert team drives innovation in RFID technology. Whether you need custom solutions or cutting-edge products, we provide advanced and effective RFID solutions tailored to your needs.
EFFICIENT & RELIABILITY
We offer reliable global shipping with in-stock items delivered within 1-3 business days in North America, Europe, and the Asia Pacific. Our proven track record ensures your satisfaction every time.
UCODE® 8 PET RFID On-Liquid Label | 43×18mm
$169.00 – $615.00Price range: $169.00 through $615.00
Specifically designed to perform better on glass bottles, UHF UCODE® 8 RFID on-liquid PET labels are a cutting-edge solution designed to provide reliable and accurate tracking in challenging environments where the presence of liquids may interfere with RFID performance. The label uses a durable and flexible PET material that ensures optimal reading range and stability even if applied directly to containers filled with liquid.
Description
Features
Frequency Band
UHF 860~960 MHz
Chip Type
NXP UCODE® 8
International Standard
ISO 18000-6C, EPCglobal Gen2v2
EPC Memory
128 bits
Operating Temperature
-20C ~ 50℃
Certificate
WEEE compliant
Specifications
Physical Specifications
Material: PET
Label Size: 43×18 mm
Inlay Size: 40×15 mm
Technical Parameters
Operating Frequency: 860~960 MHz
Communication Protocol:
ISO/IEC 18000-6C, EPCglobal Gen2v2
Antenna etching mode:
Aluminum etching (9 µm)
Operating Mode: Passive
IC EST Voltage Immunity: Max. 2000V (HBM)
Chip Characteristics
Chip Manufacturer: NXP®
Chip Type: UCODE® 8
TID Memory: 96 bits (read only)
EPC Memory: 128 bits (read & write)
Read Sensitivity: -23 dBm
Write Sensitivity: -18 dBm
Encoding speed: 16-bit per millisecond
Self Adjust: Automated tag performance optimization
Brand Identifier: Enables product authentication verification
Write Endurance: 100,000 times
Data Retention Time: 20 years
Memory Safeguard: Support
Additional Information
Operating Environment:
-20°C ~ 50°C, 20% ~ 80% RH
Label Attach Environment:
10°C ~ 40°C, 20% ~ 80% RH
Handling Precautions:
1. Do not bend.
2. Keep away from water and collision.
3. Labels with black-dot marks are bad ones, do not use.
Packaging
Packing Format: Packed in roll (ID = 76.2 mm, OD ≤ 171 mm)
Packing Quantity: 2500 ± 2 Pcs/roll
Download & Support AZL-U8-PETOL-4318

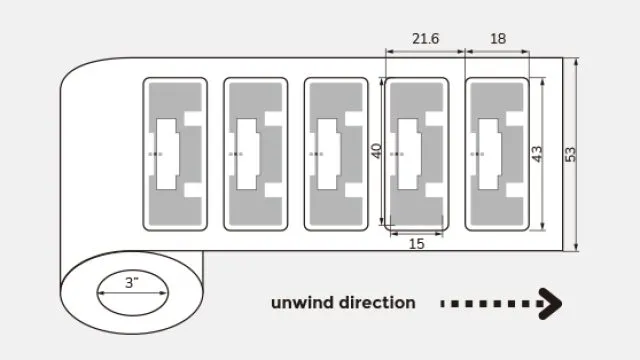

Label Dimensions AZL-U8-PETOL-4318
How to Video AZL-U8-PETOL-4318
