UHF RFID Round Wet Inlay ⌀39mm | NXP UCODE® 9
$449.00
Experience streamlined asset tracking with our 39 mm diameter round RFID wet inlay. Powered by the NXP UCODE® 9 chip, it adheres to ISO 18000-6C and EPCglobal Gen2 specifications, ensuring superior data integrity and operational efficiency.
Description
Features
Frequency Band
UHF 860~960 MHz
Chip Type
NXP UCODE® 9
International Standard
ISO 18000-6C, EPCglobal Gen2v2.1
TID Memor
96 bits
EPC Memory
96 bits
Certificate
WEEE compliant
Specifications
Physical Specifications
Material: PET
Antenna Material: Aluminum
Base paper: 70g glassine

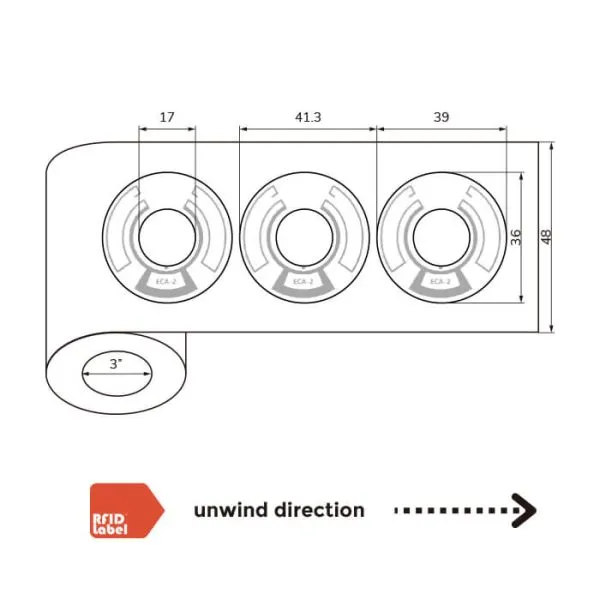

Inlay Size:
Outer diameter 39 mm, inner diameter 17 mm
Antenna Size: Diameter 36 mm
Technical Parameters
Operating Frequency: 860~960 MHz
Communication Protocol:
ISO/IEC 18000-6C, EPCglobal Gen2v2.1
Antenna Etching Mode: Aluminum etching
Max. Read Range: 8 m
Chip Characteristics
Chip Manufacturer: NXP®
Chip Type: UCODE® 9
TID Memory: 96 bits (read only)
EPC Memory: 96 bits (read & write)
Kill password: 32 bits (read & write)
Write Sensitivity: -22 dBm
Read Sensitivity: -24 dBm
Write Sensitivity: -22 dBm
Encoding Speed: 32 bits in 0.96 ms
Write Endurance: 100,000 times
Data Retention Time: 20 years
Additional Information
Operating Environment:
-40°C ~ 85°C
Storage Environment:
18°C ~ 28°C, 40% ~ 60% RH
Applications:
Inventory management | supply chain management | and product authentication, etc.
Handling Precautions:
1. Do not bend.
2. Keep away from water and collision.
3. Labels with black-dot marks are bad ones, do not use.
Packaging
Packing Format: Packed in roll, vacuumed packing in ESD bag
Roll OD: Max. 8 inch (About 203mm)
Core ID: 3 inch (76.20 ± 0.50 mm)
Packing Quantity: 1000 Pcs/roll, single roll weight 0.3685 kg
