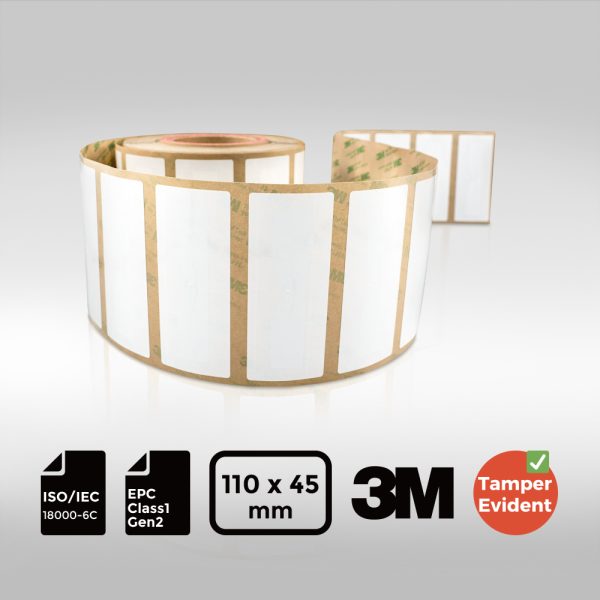

UHF RFID Windshield Label with Security Cuts 110x45mm | Alien Higgs® 9
$288.00–$962.00Price range: $288.00 through $962.00
The Alien Higgs® 9 RFID windshield label is designed to enhance your vehicle tracking capabilities. Embedded with the advanced Alien Higgs® 9 chip, the label compliant to GS1 Class 1 Gen 2 and ISO/IEC 18000-6C to ensure high-accuracy reading. Equipped with a strong and durable 3M467 adhesive, it provides a strong adhesion, perfectly combining security and efficient tracking. In addition, the label adopts a tamper-evident security cuts design, which cannot be used once removed to protect your information security.
Material: PET + 3M adhesive Label Size: 110×45 mm Inlay Size: 93×19 mm
Technical Parameters
Operating Frequency: 860~960 MHz Communication Protocol: ISO/IEC 18000-6C, GS1 Class 1 Gen 2 Antenna etching mode: Aluminum etching (10 µm) + PET (50 µm) Operating Mode: Passive IC EST Voltage Immunity: Max. 2000V (HBM) Read Range: Up to 13 m
Operating Environment: -20°C ~ 50°C, 20% ~ 80% RH Storage Environment: 18°C ~ 28°C, 40% ~ 60% RH Handling Precautions: 1. Do not bend. 2. Keep away from water and collision. 3. Labels with black-dot marks are bad ones, do not use.
Packaging
Packing Format: Packed in roll, vacuumed packing in ESD bag Roll OD Size: Max. 170 mm Core ID: 3 inch (76.20 ± 0.50 mm) Packing Quantity: 1000 ± 2 Pcs/roll, 4 rolls/ctn
As a leading RFID hardware manufacturer for over a decade, we are committed to delivering unparalleled quality at competitive prices. Our advanced production facilities and stringent quality control ensure that every product meets the highest standards.
EXPERTISE & INNOVATION
Our expert team drives innovation in RFID technology. Whether you need custom solutions or cutting-edge products, we provide advanced and effective RFID solutions tailored to your needs.
EFFICIENT & RELIABILITY
We offer reliable global shipping with in-stock items delivered within 1-3 business days in North America, Europe, and the Asia Pacific. Our proven track record ensures your satisfaction every time.
UHF RFID Windshield Label with Security Cuts 110x45mm | Alien Higgs® 9
$288.00 – $962.00Price range: $288.00 through $962.00
The Alien Higgs® 9 RFID windshield label is designed to enhance your vehicle tracking capabilities. Embedded with the advanced Alien Higgs® 9 chip, the label compliant to GS1 Class 1 Gen 2 and ISO/IEC 18000-6C to ensure high-accuracy reading. Equipped with a strong and durable 3M467 adhesive, it provides a strong adhesion, perfectly combining security and efficient tracking. In addition, the label adopts a tamper-evident security cuts design, which cannot be used once removed to protect your information security.
Description
Features
Frequency Band
UHF 860~960 MHz
Chip Type
Alien Higgs® 9
International Standard
ISO/IEC 18000-6C, GS1 Class 1 Gen 2
EPC Memory
96-496 bits
User Memory
688 bits
Read Range
Up to 13 m
Specifications
Physical Specifications
Material: PET + 3M adhesive
Label Size: 110×45 mm
Inlay Size: 93×19 mm
Technical Parameters
Operating Frequency: 860~960 MHz
Communication Protocol:
ISO/IEC 18000-6C, GS1 Class 1 Gen 2
Antenna etching mode:
Aluminum etching (10 µm) + PET (50 µm)
Operating Mode: Passive
IC EST Voltage Immunity: Max. 2000V (HBM)
Read Range: Up to 13 m
Chip Characteristics
Chip Manufacturer: Alien®
Chip Type: Higgs® 9
Nonvolatile Memory: 1024 bits
Unique TID: 48 bits (read only)
EPC Memory: 96-496 bits (read & write)
User memory: 688 bits (read & write)
Reserved Memory:
Access Password: 32 bits(read & write)
Kill Password: 32 bits (read & write)
Read sensitivity:-20 dBm
Write sensitivity: -18 dBm
Write Endurance: 200,000 times
Data Retention Time: 50 years
Additional Information
Operating Environment:
-20°C ~ 50°C, 20% ~ 80% RH
Storage Environment:
18°C ~ 28°C, 40% ~ 60% RH
Handling Precautions:
1. Do not bend.
2. Keep away from water and collision.
3. Labels with black-dot marks are bad ones, do not use.
Packaging
Packing Format: Packed in roll, vacuumed packing in ESD bag
Roll OD Size: Max. 170 mm
Core ID: 3 inch (76.20 ± 0.50 mm)
Packing Quantity: 1000 ± 2 Pcs/roll, 4 rolls/ctn
Download & Support AZL-H9-PETWL-11045
RFID Label Performance Testing
RFID Windshield Label: Auto Toll and Traffic Flow
