Nowadays, RFID (Radio Frequency Identification) technology plays an important role in various industries because of its unique advantages. Whether it is logistics tracking, inventory management, or intelligent payment, access control system, RFID technology with its efficient and accurate data transmission capability, has brought revolutionary changes for various industries. However, for RFID systems to perform at their best, a key factor cannot be ignored– antennas.
Antenna gain: understanding its meaning and influencing factors
RFID technology makes use of radio frequency signal and its spatial coupling and transmission characteristics to realize the automatic identification of stationary or moving objects. Antenna plays an important role in RFID system. It is not only responsible for receiving and transmitting radio frequency signals, but also directly affects the transmission distance, reading speed and stability of the signals. Therefore, the selection and use of appropriate antennas is very important to improve the overall performance of the RFID system.
In the field of antennas, gain is an important parameter, which indicates the ability of antennas to concentrate radiation or receive electromagnetic waves in a certain direction. To put it simply, the higher the antenna gain, the stronger the signal it radiates or receives, and the longer the transmission distance.
There are many factors that affect the antenna gain, including antenna design, material, size and working environment. In addition, the size and operating frequency of the antenna will also affect its gain performance.
Application scenarios of antennas with different gain
- Low gain antenna (0-3 dBi)
Low-gain antennas are usually suitable for short-distance, high-density RFID applications. For example, in the smart shelf management system, because the distance between the tag and the reader is close, and the information of multiple tags needs to be read at the same time, the use of low-gain antenna can improve the accuracy and stability of reading.
- Medium gain antenna (3-8 dBi)
Medium gain antennas are suitable for medium-distance and medium-density RFID applications. For example, in logistics tracking and vehicle management, the medium gain antenna can not only ensure the reading distance, but also improve the anti-interference ability and stability of the system.
- High gain antennas (8-12 dBi)
Antenna with highest gain is mainly suitable for long-distance, low-density RFID application scenarios. For example, in industrial automation and remote monitoring systems, because of the distance between the tag and the reader, and the complex and changeable environment, it is necessary to use high-gain antennas to ensure the stable transmission of the signal.
UHF 12-dBi RFID Antenna produced by RFID Label® is a high-gain antenna with high sensitivity, excellent reading performance, long-distance, large-capacity tag reading and writing, accurate speed, high security, high protection grade of IP67, excellent waterproof performance and easy installation. It is suitable for intelligent transportation, logistics, warehousing management, activity management, production line management, intelligent retail, national defense security, power asset management, financial management, medical equipment management and other applications.
FAQs
1. How to judge whether the gain of the antenna is appropriate?
Generally speaking, low-gain antennas are suitable for short-distance and high-density scenes, medium-gain antennas for medium-distance and medium-density scenes, and high-gain antennas for long-distance and low-density scenes.
2. Is the antenna gain as high as possible?
It is not that the higher the antenna gain, the better. Too high gain may lead to too strong signal direction, so that the signal in a particular direction is too strong and the signal in other directions is too weak, thus affecting the performance of the whole system.
3. How to optimize the performance of the antenna?
There are many methods to optimize the antenna performance, including selecting the appropriate antenna type, adjusting the installation position and angle of the antenna, optimizing the matching circuit of the antenna and so on.
Recommend Product

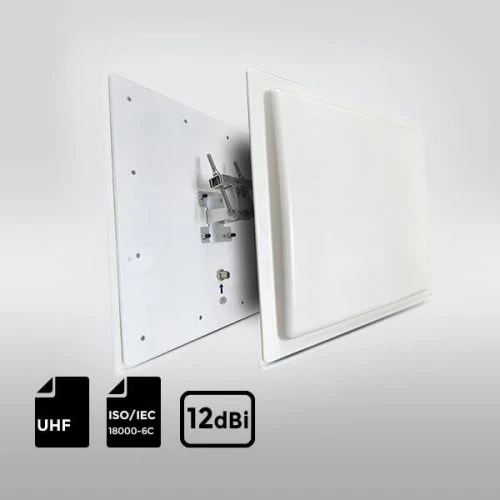

UHF 12-dBi RFID Antenna ISO 18000-6C
The UHF RFID antenna 12dBi features high sensitivity and outstanding reading performance, supporting long-distance, high-volume tag reading and writing with precision speed, and high security. It also has an IP67 high protection rating, excellent waterproof performance, and easy installation, making it suitable for a wide range of applications, including smart transportation, logistics, warehouse management, event management, production line management, smart retail, national defense security, power asset management, financial management, and medical equipment management.
